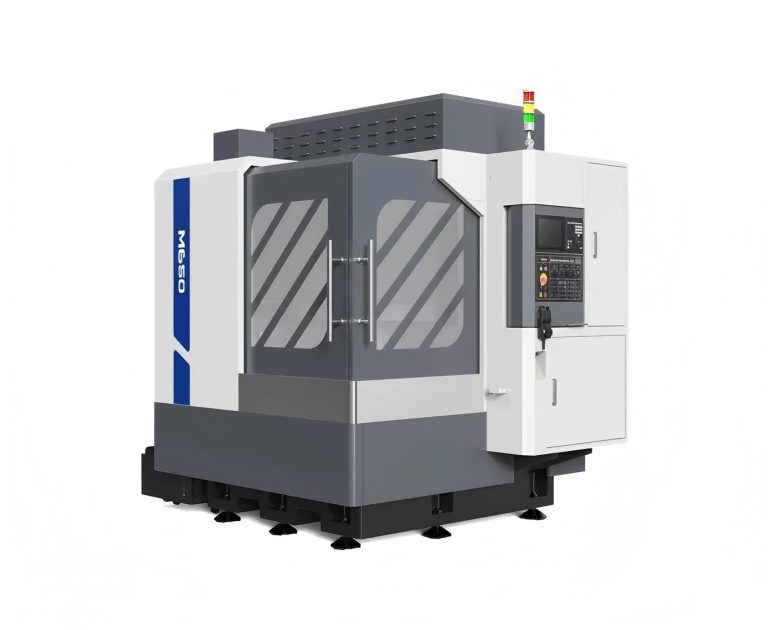

Technical Data
| Items | Unit | Machine Model:EC-M650 |
| orkbench | Table size (mm ) | 600*500 |
| Distance from table to spindle nose (mm) | 120~380 | |
| Maximum load-bearing weight ( Kg) | 300 | |
| journey | X-direction travel (mm) | 600 |
| Travel in Y direction (mm) | 500 | |
| Z travel (mm) | 260 | |
| Spindle | Spindle power (K w) | 8.5 |
| Spindle maximum speed (rpm) | 30 000 | |
| Spindle diameter (mm) | φ120 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | HSK-E40 | |
| Feed rate | Maximum dry run feed speed (m/min) | 15 |
| Maximum cutting feed rate (m/min) | 10 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.005 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.003 | |
| Tool magazine | Tool magazine capacity | 13T |
| Tool magazine form | Semi-umbrella servo tool magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 13 | |
| Other parameters | Dimensions (front and rear *left and right * up and down mm) | 2230*1820*2350 |
| Weight (Approx. weight: Kg) | 4800 | |
| Whether to configure network transmission and monitoring functions | Have | |
| Whether to configure the tool setter | Have |
Description
It is ideal for the precision machining of copper electrodes, molds, precision parts, medical instruments, and precision instruments. It is specifically designed for industries that require high-precision components.
- Mitsubishi E80A CNC System
Powered by the high-performance Mitsubishi E80A CNC system for precision and control.
- Gantry-Style Mineral Casting Bed and Beam
The bed and beam are constructed from mineral casting, offering superior vibration resistance for stable machining.
- High-Precision Components
Standard configuration includes NSK ball screws and THK linear guides, ensuring stable and reliable machining accuracy.
- 16-Tool Servo Tool Magazine
Equipped with a 16-tool servo-driven tool magazine for efficient tool changes.

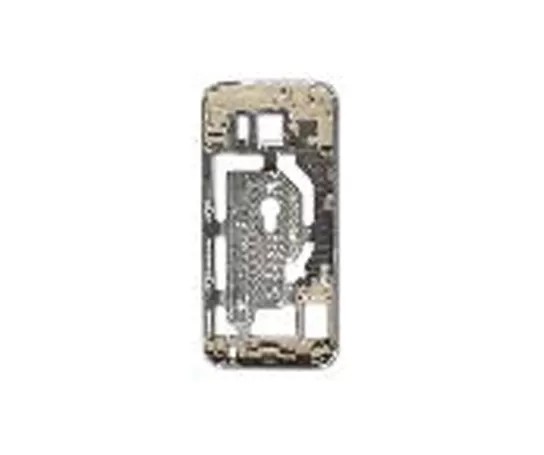

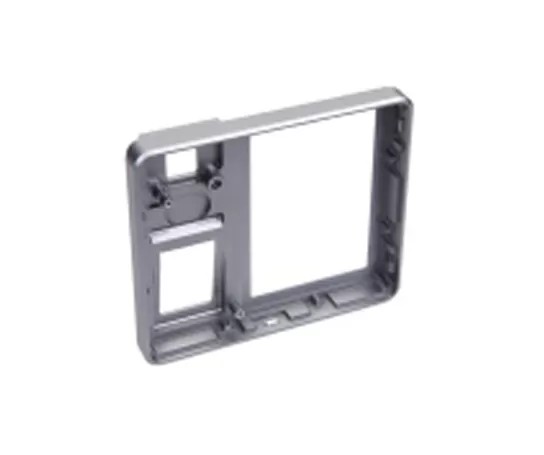

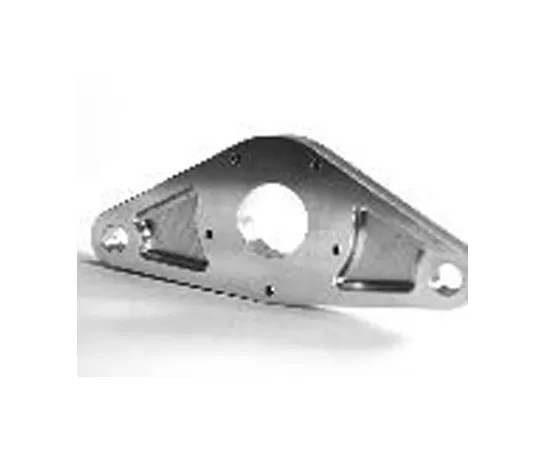

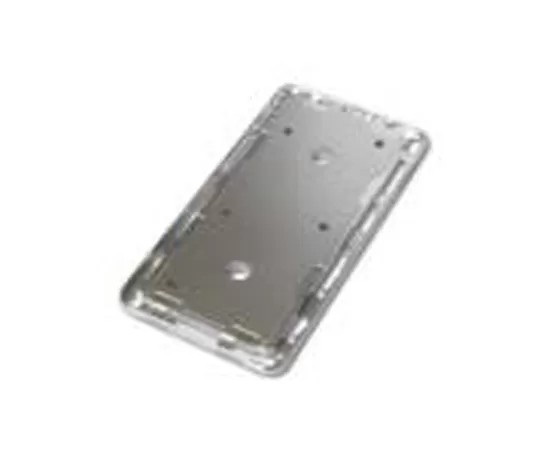

Applications
Advantages
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
