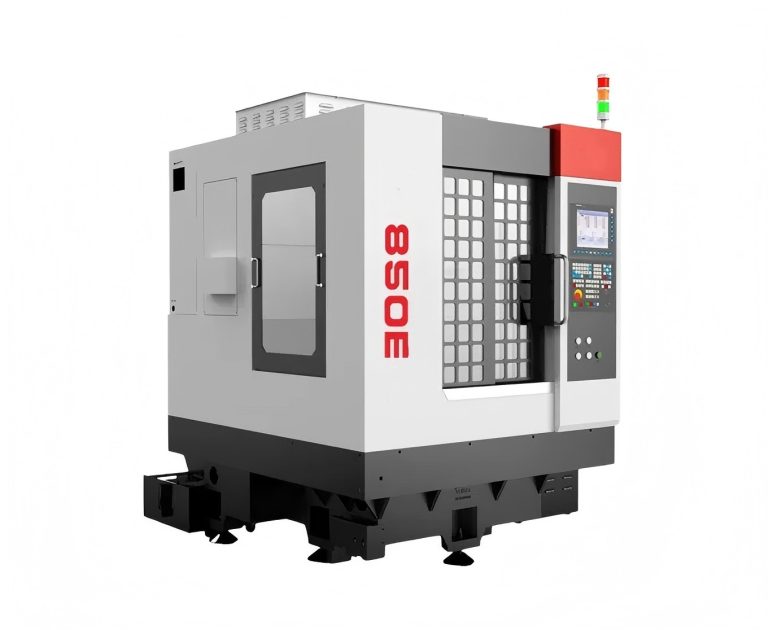

Technical Data
| Items | Unit | Machine Model:EC-850E |
| kbench | Table size (mm ) | 850*600 |
| Distance from table to spindle nose (mm) | 180~330 | |
| Maximum load-bearing weight ( Kg) | ||
| journey | X-direction travel (mm) | 800 |
| Travel in Y direction (mm) | 600 | |
| Z travel (mm) | 150 | |
| Spindle | Spindle power (K w) | 6 |
| Spindle maximum speed (rpm) | 36 000 | |
| Spindle diameter (mm) | φ100 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | HSK-E32 | |
| Feed rate | Maximum dry run feed speed (m/min) | 18 |
| Maximum cutting feed rate (m/min) | 10 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.006 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.005 | |
| Tool magazine | Tool magazine capacity | 13T |
| Tool magazine form | Semi-umbrella servo tool magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 10.5 | |
| Other parameters | Dimensions (front and rear *left and right * up and down mm) | |
| Weight (Approx. weight: Kg) | 2850 | |
| Whether to configure network transmission and monitoring functions | Have | |
| Whether to configure the tool setter | Have |
Description
It is ideal for edge grinding, hole drilling, chamfering, and thinning processes for automotive display glass, tablet cover glass, and other glass materials.
- Cast Iron Bed and Beam Structure
The machine’s bed and beam are made of cast iron, and its structure is optimized using computer finite element analysis (FEA) to ensure superior stability and precision retention compared to similar machines.
- Customizable High-Speed Precision Spindles
Offers the flexibility to choose from different high-speed precision electric spindles based on the specific machining requirements of different products.
- XY-Axis Travel of 850*600mm
Capable of handling larger workpieces with this extended travel range.
- Semi-Umbrella 13-Tool Magazine
Features a stable and mature 13-tool semi-umbrella type tool magazine for efficient multi-process machining.

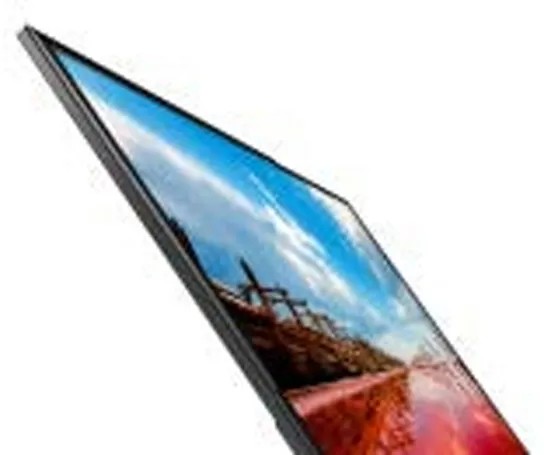

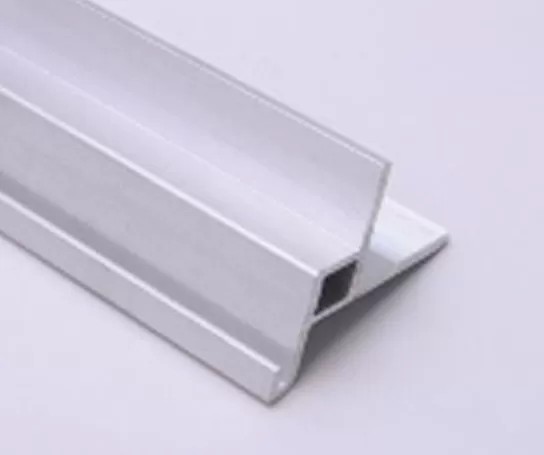

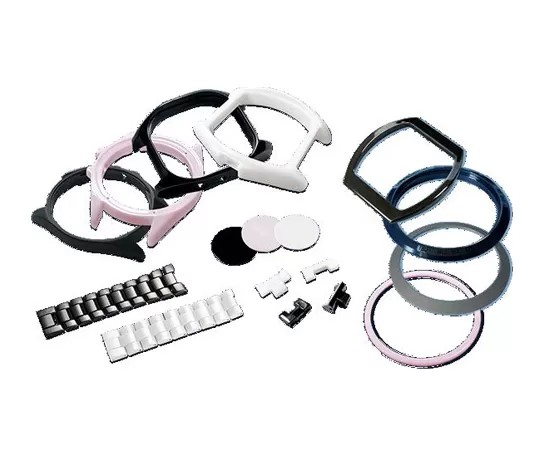

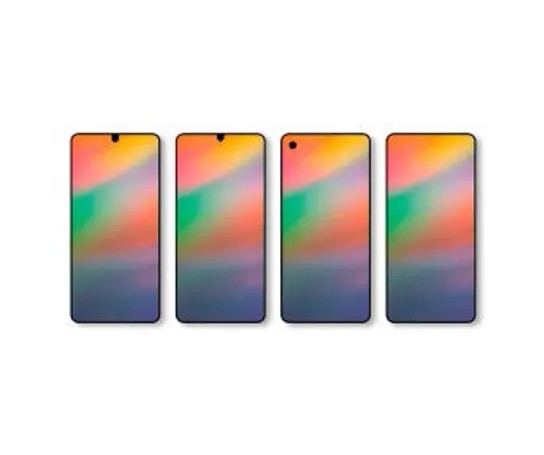

Applications
Advantages
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
