Technical Data

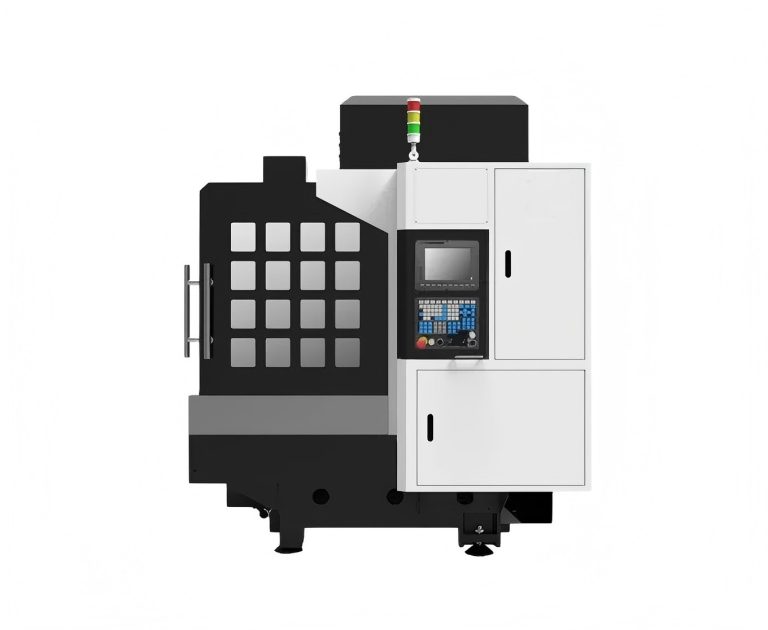

| Items | Unit | Machine Model:EC-650 |
| workbench | Table size (mm) | 600*500 |
| Distance from table to spindle nose (mm) | 120~380 | |
| Maximum load-bearing weight (Kg) | ||
| journey | X-direction travel (mm) | 600 |
| Travel in Y direction (mm) | 500 | |
| Z travel (mm) | 260 | |
| Spindle | Spindle power (Kw) | 7.5 |
| Spindle maximum speed (rpm) | 24 000 | |
| Spindle diameter (mm) | φ120 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | BT30 | |
| Feed rate | Maximum dry run feed speed (m/min) | 15 |
| Maximum cutting feed rate (m/min) | 10 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.008 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.005 | |
| Tool magazine | Tool magazine capacity | 12T |
| Tool magazine form | Semi-umbrella servo tool magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 13.5 | |
| Other parameters | Dimensions (front and rear *left and right * up and down mm) | |
| Weight (Approx. weight: Kg) | 3500 | |
| Whether to configure network transmission and monitoring functions | Have | |
| Whether to configure the tool setter | Have |
Description
It is is widely used for precision mold core machining, copper electrodes for molds, batch processing of aluminum products, shoe mold manufacturing, jig processing, and in the watch and eyewear industries. It is also ideal for precision machining of aluminum alloy, stainless steel parts, copper electrodes, and small copper molds.
- Syntec 22MA CNC System
Equipped with the advanced Syntec 22MA CNC system for reliable control and precision.
- Sturdy Cast Iron Bed and Beam
Provides a highly stable and rigid foundation for precise machining.
- Optional Upgrades
Offers optional accessories such as a probe, 4th axis, 12-tool magazine, and oil mist collector to enhance functionality.
- High Load-Bearing and Positioning Accuracy
Designed to handle heavy loads with high positioning precision for demanding machining tasks.
Applications
Advantages
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
