Technical Data
| Name | Unit | Machine Model:EC-550 |
| workbench | Table size (mm ) | 550*500 |
| Distance from table to spindle nose (mm) | 100~300 | |
| Maximum load-bearing weight ( Kg) | 150 | |
| journey | X-direction travel (mm) | 550 |
| Travel in Y direction (mm) | 450 | |
| Z travel (mm) | 200 | |
| Spindle | Spindle power (K w) | 6 |
| Spindle maximum speed (rpm) | 36 000 | |
| Spindle diameter (mm) | φ100 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | HSK-E30 | |
| Feed rate | Maximum dry run feed speed (m/min) | 30 |
| Maximum cutting feed rate (m/min) | 10 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.005 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.004 | |
| Tool magazine | Tool magazine capacity | 16T |
| Tool magazine form | Semi-umbrella servo tool magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 11 | |
| Other parameters | Dimensions (front and rear *left and right * up and down mm) | 1890*1860*2200 |
| Weight (Approx. weight: Kg) | 2700 | |
| Whether to configure network transmission and monitoring functions | Have | |
| Whether to configure the tool setter | Have |
Description

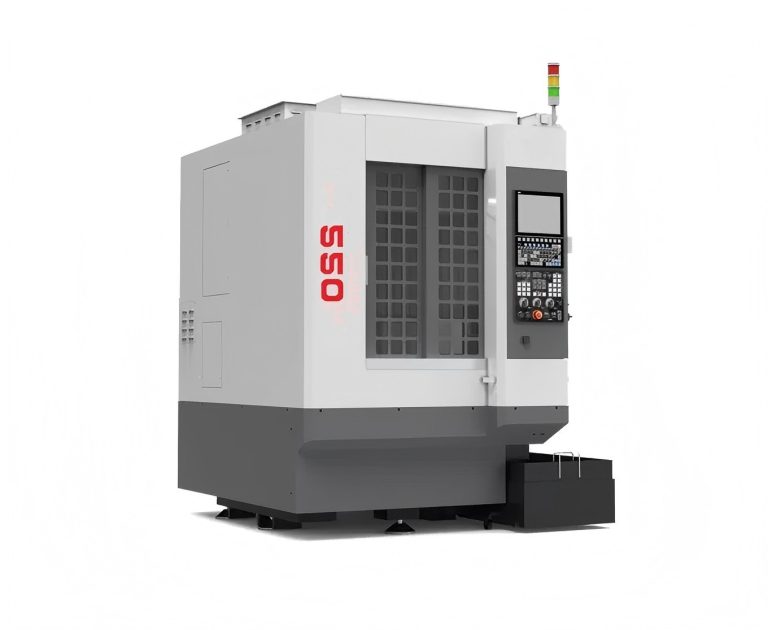

It is designed for the precision machining of copper electrodes, small molds, small metal components, 3C products, precision parts for aerospace, medical instruments, and small copper components. It excels in producing highly accurate and complex parts across a range of industries.
- Syntec CNC System
Equipped with a Syntec CNC system, offering precision and reliability.
- Fixed-Beam Gantry Design
Features a fixed-beam gantry structure with a cast iron bed and beam for high rigidity and stability.
- Compact Design
Standard configuration includes a high-precision 36,000 RPM electric spindle (HSK E32).
- Servo Tool Magazine
Comes standard with a 16-tool servo-driven tool magazine, with an optional 21-tool magazine for added capacity.
Applications
Advantages
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
