Technical Data
| Items | Unit | Machine Model:HMC-H11 | |
| Travel | Table travel (X axis) | mm | 1100 (Left and right) |
| Saddle travel (Z axis) | mm | 650 (Front and back) | |
| Headstock travel (Y axis) | mm | 600 (Up and down) | |
| Distance from spindle end to table center | mm | 175～825 | |
| Distance from spindle center to table surface | mm | 20～620 | |
| Max. workpiece rotation diameter | mm | 1200 | |
| Max. allowable height of workpiece | mm | 720 (Work surface) | |
| Ttable | Table size | mm | 500*500 |
| Max. load | Kg | 500 | |
| T-slot (number of slots – slot width * spacing) | mm | 5-18*100 | |
| Center positioning hole | mm | Φ100H7 | |
| Division accuracy | arc.sec | ±15 | |
| repeated accuracy | arc.sec | ±8 | |
| Locking pressure | Kg/cm2 | 35 | |
| Max. speed | rpm | 40 | |
| Min. division unit | Deg(°) | 0.001 | |
| Spindle | Motor power (rated/short-term) | kw | 7.5/11 |
| Motor torque (rated/short-term) | N.m | 35.8/95.5 | |
| Speed | r/min | 12000(Direct connection) | |
| Spindle diameter | mm | φ150 | |
| Tool holder specifications | BT40 | ||
| Rivet specifications | P40T-I（MAS403） | ||
| Speed | Cutting feed speed range | mm/min | 1-10000 |
| X, Y, Z axis rapid traverse speed | m/min | 36 | |
| Accuracy | Positioning accuracy (X/Y/Z) | mm | 0.01 GB/T 18400.4 (Full travel) |
| Repeated positioning accuracy (X/Y/Z) | mm | 0.007 GB/T 18400.4 (Full travel) | |
| Tool magazine | Tool magazine capacity | T | 24 |
Description
Column-fixed cross slide structure, compact and fast
The machine tool is suitable for the multi-variety, small-batch processing of complex parts such as medium and small-sized box-shaped components, plates, disks, valves, housings, and molds. It is widely used in industries such as precision parts, 5G products, hardware, automotive parts, and medical devices.

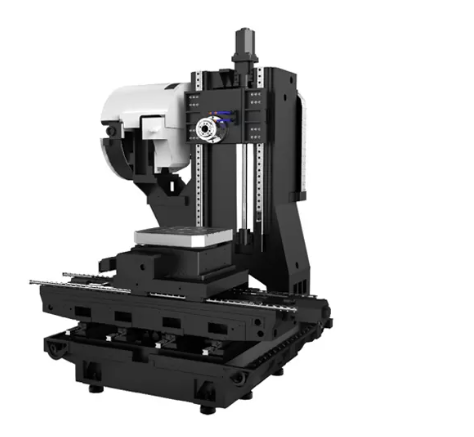

Machine Structure
The machine features a cross slide table and a fixed column structure. It is equipped with an oversized, stable base and a high-rigidity, large-span column. Key components are made from high-strength cast iron materials for enhanced durability and stability.

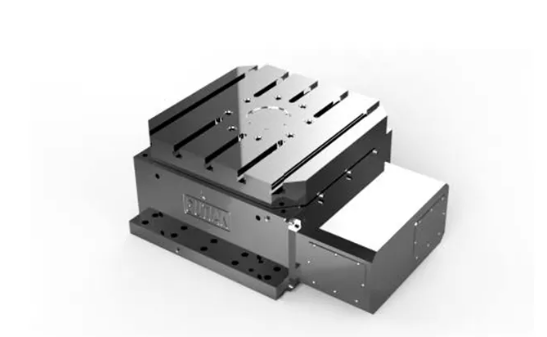

Cam-Type CNC Rotary Table
- Minimal Indexing: The rotary table offers a minimum indexing of 0.001°.
- High Precision and Speed: The cam-type CNC rotary table uses a constant-speed driving surface of the cam and pre-loaded rolling contact between the cam surface and the needle bearing on the turret, ensuring high precision, high speed, zero backlash, and the ability to handle heavy loads.

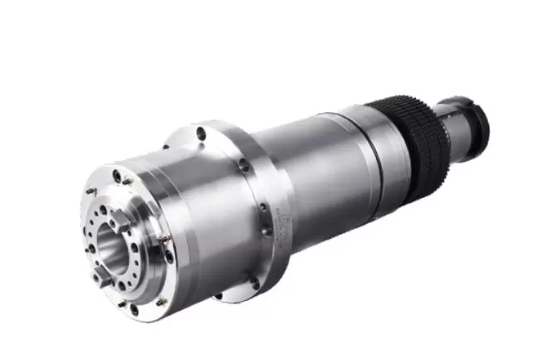

BT40-12000rpm Direct-Drive Spindle Unit
- Oil Cooling System: Equipped with an oil cooling system to prevent spindle thermal deformation, ensuring consistent performance.
- Labyrinth-Type Nose Design: Features a labyrinth-style nose with an air curtain protection function to prevent coolant intrusion, enhancing spindle durability and precision.

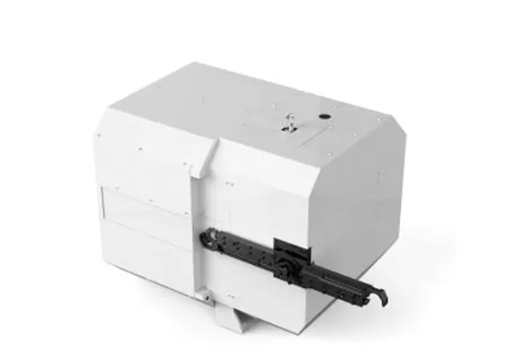

24T Disc Tool Magazine
- Angle Encoder Control: Utilizes an angle encoder to control the tool change action, ensuring stable and reliable signals for smooth and precise tool changes.
- Cam-Driven Mechanism: The cam-driven tool magazine guarantees high-precision rotation, ensuring smooth operation even with heavy-duty tools.
- Fully Enclosed Design: The fully enclosed structure prevents machining iron filings from splashing onto the tool magazine, protecting the tools and maintaining machining accuracy, while enhancing overall stability.

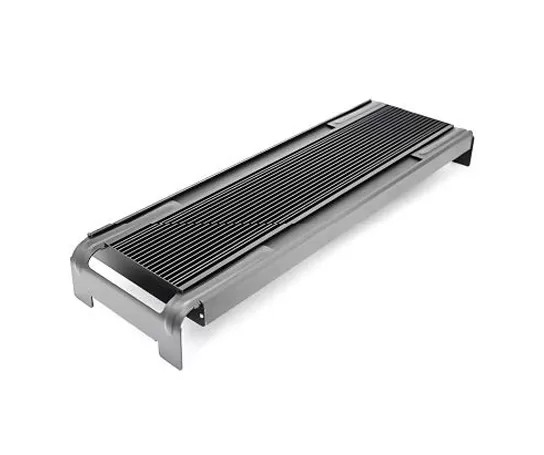

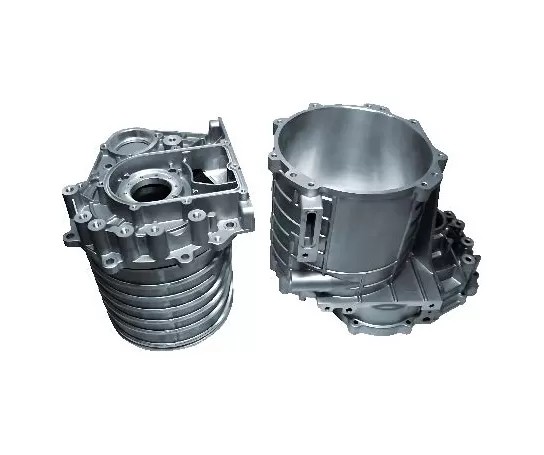

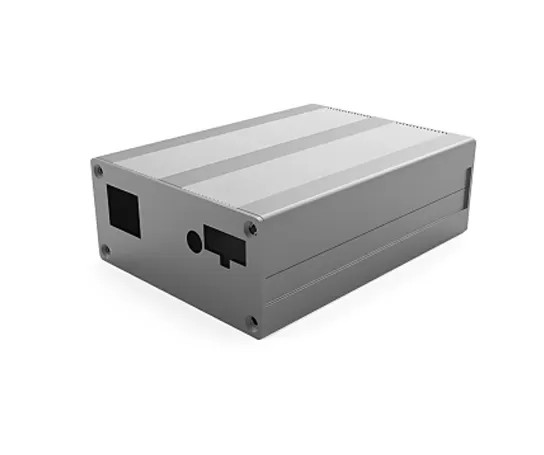

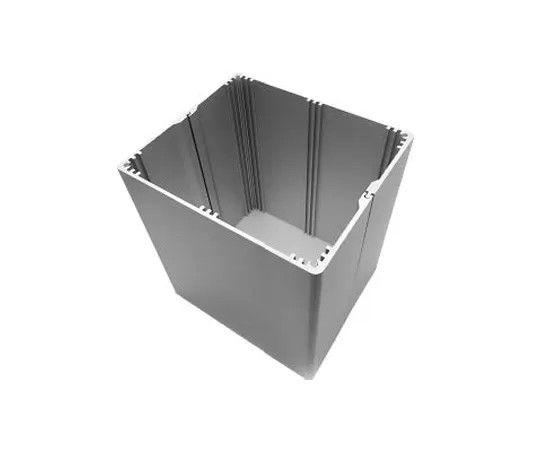

Applications
Advantages
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
