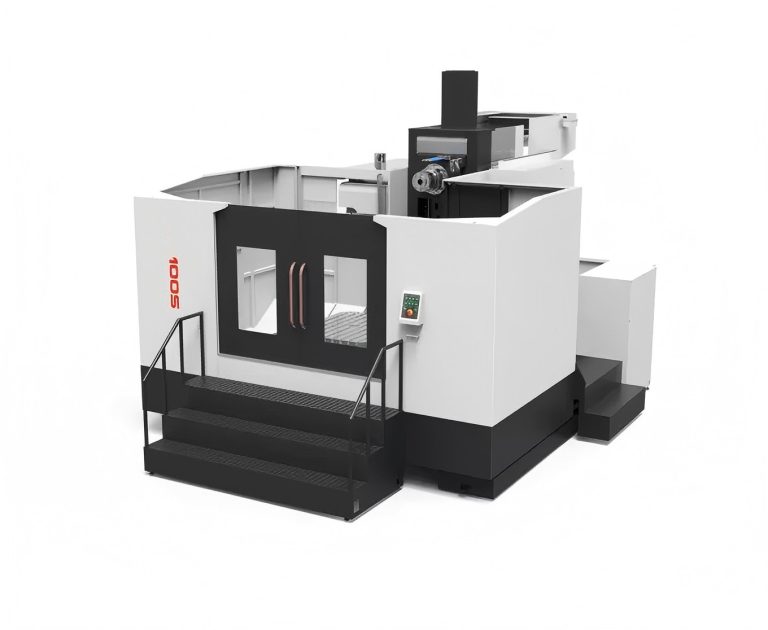

Technical Data
| Items | Unit | Machine Model: HMC-100S | Remark | ||
| Travel | X/Y/Z | mm | 2000/1300/1200 | ||
| Distance from spindle end face to table center | mm | 350-1550 | |||
| Distance from the spindle to the table surface | mm | 150-1450 | |||
| Max. workpiece size | mm | φ2000×1300 | |||
| Table | Size | mm | 1000*1250 | ||
| Max. load | kg | 5000 | |||
| T-row slots (number of slots × slot width × spacing) | mm | 9×22×100 | |||
| Min. setting unit | ° | 0.001 | |||
| Spindle | Power (S1/S6 15%) | kW | 28/42 | ||
| Torque (S1/S6 15%) | Nm | 334/630 | |||
| Speed | r/min | 10000 | |||
| Taper | – | BT50 | |||
| Speed | Feed axis motor power | kW | 6.4/5.4/6.4/5.4 | ||
| X, Y, Z axis rapid traverse | m/min | 24/24/24 | |||
| Accuracy | Positioning accuracy (X/Y/Z) | mm | X/Y/Z: 0.012 (no grating), 0.01 (with grating) B: 10”, 8” (with grating) | VDI3441 | |
| Repeat positioning accuracy (X/Y/Z) | mm | X/Y/Z: 0.008 (no grating) , 0.006 (with grating) B: 8”, 6” (with grating) | VDI3441 | ||
| Tool magazine | Capacity | T | 40 | ||
| Tool length | mm | 500 | |||
| Tool diameter | mm | 125/250 | |||
| Tool weight | kg | 18 | |||
| other | System | – | Siemens 828D | ||
| Air source | flow | L/min | 500 (ANR) | ||
| pressure | MPa | 0.6~0.8 | |||
| Total electrical capacity | KVA | 65 | |||
| Size (L*W*H) | mm | 7130×4812×4125 | |||
| Total Weight | kg | 19000 | |||
Description
High speed High precision High efficiency
It is mainly used for part processing in industries such as construction machinery, automotive, energy, information, and molds. It is suitable for machining large box-type and shell-type components, particularly ideal for processing complex and irregular-shaped parts.

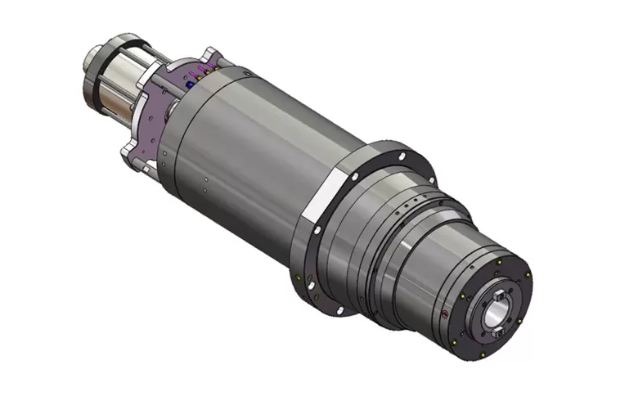

High-Torque Electric Spindle System
- Equipped with a high-power BT50 electric spindle, featuring automatic dual-winding switching, capable of meeting different requirements for high speed and high torque. The spindle offers high speed, high precision, and low noise performance.
- The standard temperature-controlled cooling system effectively reduces the spindle temperature, preventing thermal deformation and maintaining stable machining accuracy during extended operations.
- Additionally, various spindle options are available to handle different operating conditions, ensuring efficient and stable performance in diverse production environments.

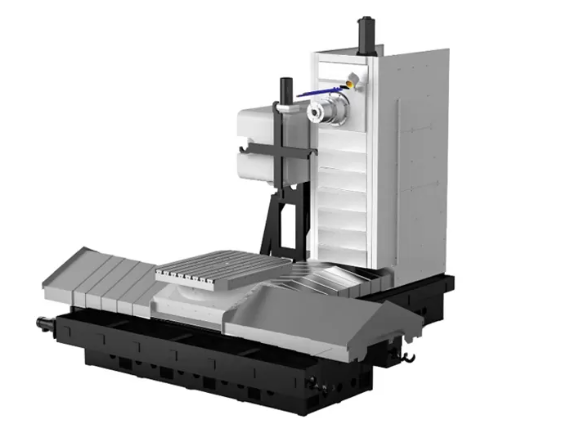

Structure Design for Large Box-Type Components
The T-shaped structure with Z-axis column movement provides the rotary table with an exceptionally large rotation space. With a maximum rotation diameter of φ2000mm, it easily handles the machining of most box-type component

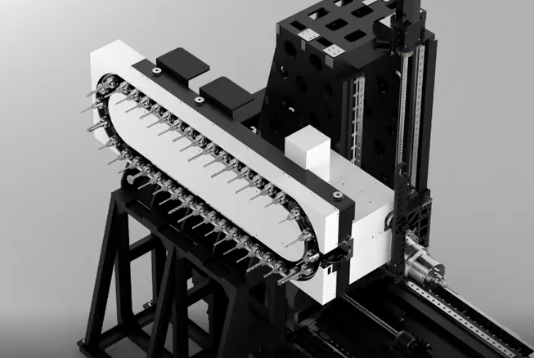

40t Chain-Type Floor-Mounted Tool Magazine

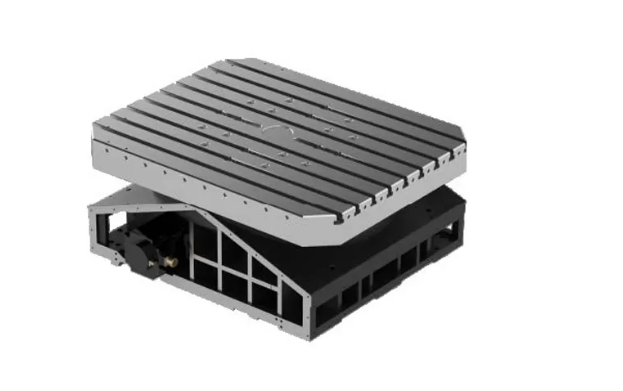

High-Precision Cam Rotary Table
- The system uses high-precision taper positioning pins combined with a hydraulic boost locking mechanism to ensure the worktable is firmly clamped, maintaining stability and vibration-free performance during machining.
- The cam-type CNC rotary table features a curved cam’s constant-speed drive surface and preloaded rolling contact transmission with needle bearings on the turret, offering high precision, high speed, zero backlash, and the ability to handle heavy loads.
- Additionally, a high-precision direct-drive rotary table is available as an option, equipped with a high-torque frameless direct-drive motor, large-diameter high-precision dedicated rotary table bearings, and a Renishaw circular grating for enhanced accuracy and stability.
