Technical Data
| Items | Unit | Machine Model:5AGMC-1530 | Remarks | ||
| Travel | Table travel (X-axis) | mm | 3200 | ||
| Saddle travel (Y-axis) | mm | 2700 | |||
| Ram travel (Z-axis) | mm | 1000 | |||
| Spindle nose to table distance | mm | 100～1100 | |||
| Spindle overhang | mm | 329.2 | |||
| Effective gantry width | mm | 2450 | |||
| Table | Table size | mm | 1500*3000 | ||
| Max. load | Kg | 10000 | |||
| T-slot | mm | 28 | |||
| Spindle | Spindle power | KW | 30 | ||
| Max. speed | r/min | 18000 | |||
| Torque output | Nm | 72Nm-S1, 85Nm-S6 | |||
| Spindle taper | HSK-A63 | ||||
| A-axis swing angle | ±110° | ||||
| C-axis rotation | ±360° | ||||
| A/C-axis max. speed | rpm | 60 | |||
| Speed | Feed rate range (Cutting) | mm/min | 10000/10000/10000 | ||
| Rapid traverse speed (X/Y/Z-axis) | mm/min | 15000/15000/15000 | |||
| Accuracy | Positioning accuracy(With scale) | mm | 0.023/0.021/0.014 | Standard Fagor Linear Scale | |
| Repeatability(With scale) | mm | 0.015/0.013/0.011 | Standard Fagor Linear Scale | ||
| A-axis Positioning accuracy | 8″（VD13441） | ||||
| A-axis Repeatability | 4″（VD13441） | ||||
| C-axis Positioning accuracy | 8″（VD13441） | ||||
| C-axis Repeatability | 4″（VD13441） | ||||
| Others | Z-axis counterweight | Hydraulic + nitrogen balance | |||
| CNC system | SIEMENS ONE | 5-axis simultaneous control | |||
| Air supply | Flow | L/min | 500 | ||
| Pressure | MPa | 0.6~0.8 | |||
| Coolant tank capacity | L | 750 | |||
| Machine size(L×W×H) | mm | 7800*6100*6000 | |||
| Machine Enclosure | set | Full perimeter sheet metal | No top cover | ||
Description
Primarily used for machining complex parts, aluminum and its alloys, as well as difficult-to-machine materials. It is capable of high-precision and high-efficiency machining of complex spatial surfaces.
Characters
Gantry Configuration

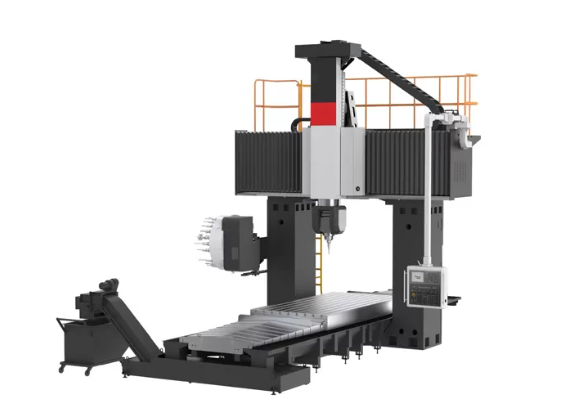

The machine adopts a gantry-fixed structure with table-moving configuration, providing optimal stability for efficient cutting operations.
Stepped Guide Rails

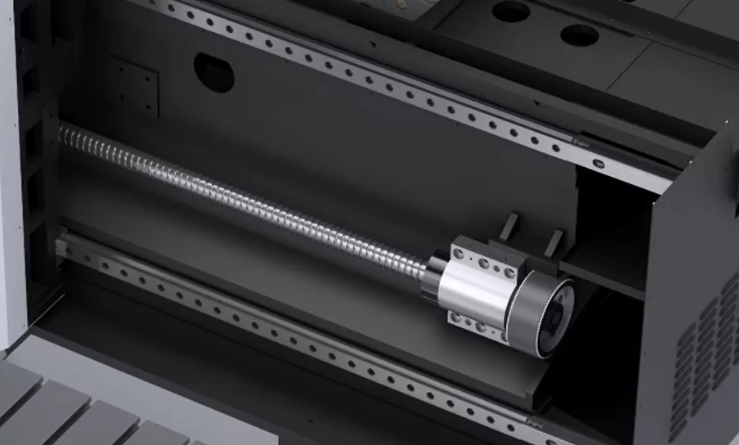

The beam guide rails are arranged in a stepped layout, increasing the guide rail span and improving load-bearing capacity, ensuring good load-bearing performance and stable cutting during machining.
Nitrogen Balancing

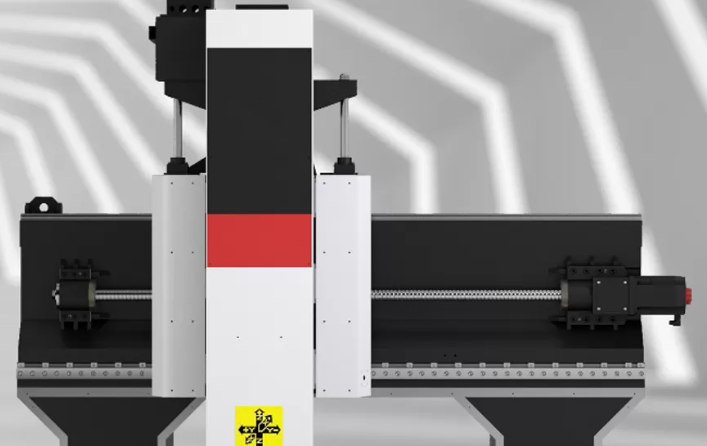

The Z-axis uses a nitrogen balancing cylinder to balance the weight of the ram.
Spindle Unit

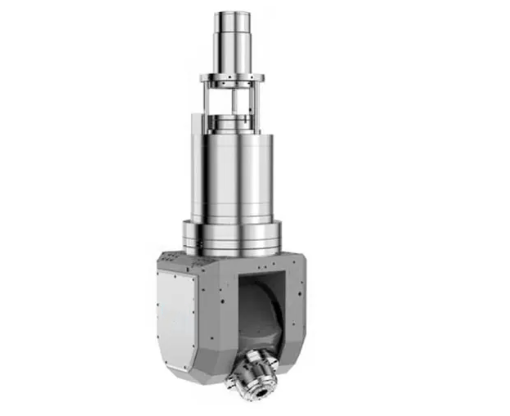

- The spindle unit uses a Zhongke Ibeg T70.5 5-axis linked A/C double swivel milling head, which can achieve 5-axis linked machining of complex surfaces.
- With high-precision encoders and a hydraulic clamping system, the A and C axes can be clamped at any angle within their operating range (C axis ±360°, A axis ±110°).
- Standard 18000rpm motorized spindle, capable of high-precision, fast, and continuous cutting.
Applications
Advantages
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
