Technical Data
| Items | Unit | Machine Models | |||||||||
| GMC-3040B | GMC-3050B | GMC-3060B | GMC-3080B | GMC-3040C | GMC-3050C | GMC-3060C | GMC-3080C | ||||
| Travel | X-axis travel | mm | 4200 | 5200 | 6200 | 8400 | 4200 | 5200 | 6200 | 8400 | |
| Y-axis travel | mm | 3700 | 3700 | ||||||||
| Z-axis travel | mm | 1000(Opt. 1250) | 1000(Opt. 1250) | ||||||||
| Distance from spindle end to table | mm | 250～1250(Opt. 250～1500) | 200～1200 | 100～1100(Opt. 100～1350) | |||||||
| Effective gantry width | mm | 3480 | 3480 | ||||||||
| Table | Table size (L×W) | mm | 3000*4000 | 3000*5000 | 3000*6000 | 3000*8000 | 3000*4000 | 3000*5000 | 3000*6000 | 3000*8000 | |
| Max. load | kg | 24000 | 28000 | 32000 | 36000 | 24000 | 28000 | 32000 | 36000 | ||
| T-slot (Width×Pitch×Qty) | mm | 28*200*15 | 28*200*15 | ||||||||
| Spindle | Drive type | / | Gear drive(Opt. Belt drive) | Motorized spindle | |||||||
| Max. spindle speed | r/min | 6000 | 10000(Opt. 15000, 18000) | ||||||||
| Spindle power (Rated/Peak) | kW | 22/35 | 26/45 | ||||||||
| Torque output (Rated/Peak) | N.m | 790/1258 | 305/623 | ||||||||
| Ram section (Square ram) | 420*420(Opt. Z-Axis box ways 400*400, 450*450) | 420*420 | |||||||||
| Spindle taper | / | BT50 | BT50(Opt. BBT40, HSK-A63) | ||||||||
| ATC (Opt.) | Number of tools | T | 24(40) | 24(40) | |||||||
| Max. tool dia. (Full/Adjacent) | mm | φ110/φ200 | φ110/φ200 | ||||||||
| Max. tool length | mm | 350 | 350 | ||||||||
| Max. tool weight | kg | 18 | 18 | ||||||||
| Speed | Feed rate range (Cutting) | m/min | 8/8/8 | 6/6/6 | 6/6/6 | 6/6/6 | 8/8/8 | 6/6/6 | 6/6/6 | 6/6/6 | |
| Rapid traverse speed (X/Y/Z-axis) | m/min | 10/12/15 | 10/12/15 | 10/12/15 | 8/12/15 | 10/12/15 | 10/12/15 | 10/12/15 | 8/12/15 | ||
| Accuracy | Positioning accuracy | X | mm | 0.032/0.028 | 0.036/0.032 | 0.041/0.037 | 0.054/0.049 | 0.032/0.028 | 0.036/0.032 | 0.041/0.037 | 0.054/0.049 |
| (Without/With scale) | Y | mm | 0.029/0.025 | 0.029/0.025 | |||||||
| Z | mm | 0.018/0.014 | 0.018/0.014 | ||||||||
| Repeatability | X | mm | 0.020/0.018 | 0.023/0.021 | 0.025/0.023 | 0.031/0.028 | 0.020/0.018 | 0.023/0.021 | 0.025/0.023 | 0.031/0.028 | |
| (Without/With scale) | Y | mm | 0.017/0.015 | 0.017/0.015 | |||||||
| Z | mm | 0.012/0.011 | 0.012/0.011 | ||||||||
| Others | Z-axis counterweight | / | Hydraulic + nitrogen balance | Hydraulic + nitrogen balance | |||||||
| CNC system | / | FANUC 0I-MF PLUS (Opt. Siemens 828D) | FANUC 0I-MF PLUS (Opt. Siemens 828D) | ||||||||
| Air supply | Flow | L/min | 300 | 300 | |||||||
| Pressure | MPa | 0.6~0.8 | 0.6~0.8 | ||||||||
| Total electrical capacity | kVA | 70 | 70 | ||||||||
| Coolant tank capacity | L | 800 | 800 | ||||||||
| Machine size | Length | mm | 10142 | 12164 | 14645 | 19100 | 10142 | 12164 | 14645 | 19100 | |
| Width | mm | 7281 | 7281 | ||||||||
| Height | mm | 5200(5900 when Z axis is optional) | 5200(5900 when Z axis is optional) | ||||||||
| Machine Enclosure | – | Semi-surrounding sheet metal (work area only) | Semi-surrounding sheet metal (work area only) | ||||||||
Description
The machine series is mainly used for high-speed and high-precision machining of parts in industries such as automotive components, molds, construction machinery, valves, rail transit, energy, agricultural machinery, and coal mining machinery.
Characters
Machine Structure

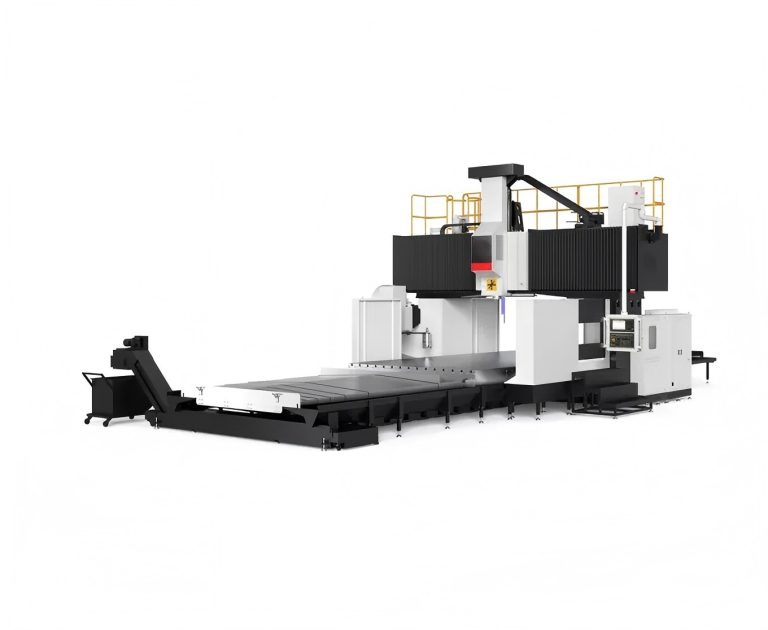

- The machine features a gantry frame fixed structure with a moving worktable.
- High-Rigidity Beam: The beam adopts a rectangular large cross-section arch design. The height-to-width ratio is optimized through simulation analysis, significantly enhancing its bending and torsional resistance, ensuring precision stability.

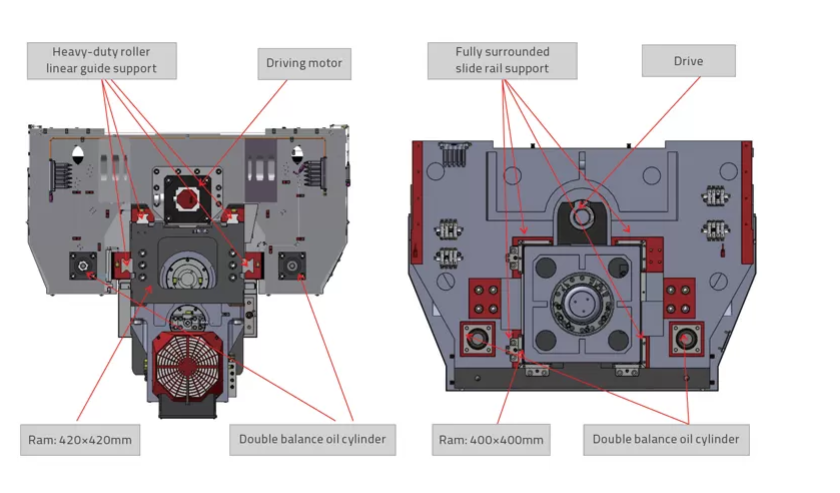

- Large Cross-Section Ram: The ram has a cross-sectional size of 420x420mm, supported by four linear guide rails in a semi-enclosed arrangement. This provides high-strength support with low friction resistance, ensuring zero creep at low speeds, minimal vibration, fast response, and excellent dynamic and static performance, low maintenance requirements, and long service life.
- Multiple Support Table: The table is supported by multiple closely spaced slides, ensuring stable and reliable load-bearing performance with excellent precision retention.
Diverse Spindle Options
- Various Drive Options
- Configurable with belt drive, geared head, electric spindle, and automatic right-angle milling head.

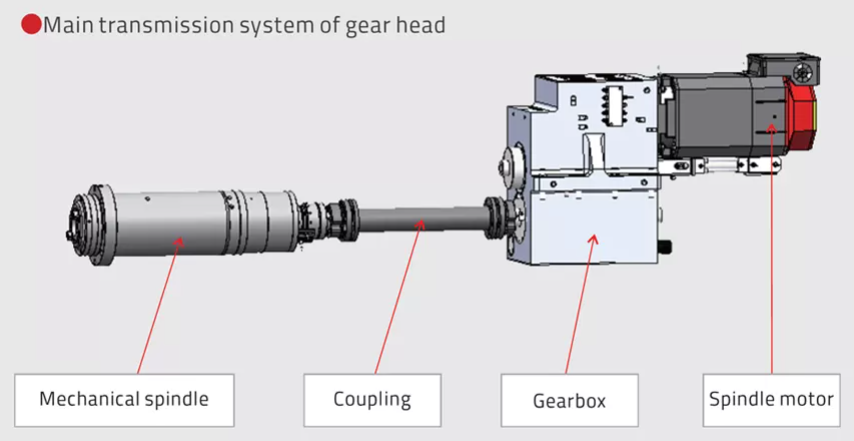

- Gear-driven Spindle
- Features a BT50 interface with a maximum speed of 6000rpm and an output torque of up to 1331Nm. The gearbox and main motor are separated from the spindle, effectively minimizing accuracy issues caused by heat generation.
- Gear Drive: The motor is reduced through a low-backlash reducer, increasing torque transmission. Combined with larger lead screws, this ensures fast drive speeds, stable performance, and high precision (X-axis ≥ 4200mm / Y-axis ≥ 3700mm).
- Nitrogen Balancing: The Z-axis drive system uses a servo motor directly coupled to a ball screw, with a dual-cylinder balancing system on both sides of the ram to ensure smooth reversal of Z-axis feed and fast dynamic response.
- Thermal Compensation: The ball screw features a pre-tensioned structure at both ends, effectively eliminating precision loss caused by thermal expansion.

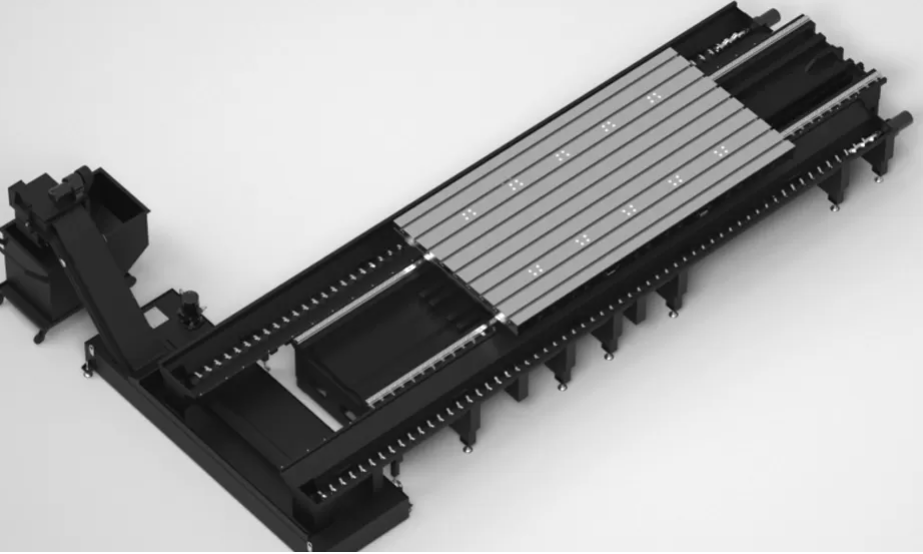

Chip Removal and Coolant Tank
- Spiral Chip Conveyor: One set on each side of the worktable, with a 120mm screw diameter and large square steel cross-section, quickly expelling chips outside the machine.
- Chain-type Chip Elevating Conveyor: Located at the machine’s end, with a 45-degree incline, wider chain plate, and sawtooth scraper bars, quickly collecting chips into the small chip conveyor.
- Small Chip Conveyor: Collects and transports chips.
- Coolant Tank: Multi-layer filtration system to filter impurities and ensure smooth machining.
Advantages
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
