Technical Data
| Name | Unit | Machine Model:MC-700 |
| workbench | Table size (mm) | 400*700 |
| Distance from table to spindle nose (mm) | 180~500 | |
| Maximum load-bearing weight (Kg) | ||
| journey | X-direction travel (mm) | 400 |
| Travel in Y direction (mm) | 700 | |
| Z travel (mm) | 320 | |
| Spindle | Spindle power (Kw) | 3.7/5.5 |
| Spindle maximum speed (rpm) | 20000 | |
| Spindle diameter (mm) | φ100 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | BT30 | |
| Feed rate | Maximum dry run feed speed (m/min) | 36 |
| Maximum cutting feed rate (m/min) | 20 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.005 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.004 | |
| Tool magazine | Tool magazine capacity | 21T*2 |
| Tool magazine form | Inclined disc knife magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 24 | |
| Other parameters | Dimensions (front and rear *left and right * up and down mm) | |
| Weight (Approx. weight: Kg) | 5500 | |
| Whether to configure network transmission and monitoring functions | Have | |
| Whether to configure the tool setter | Have | |

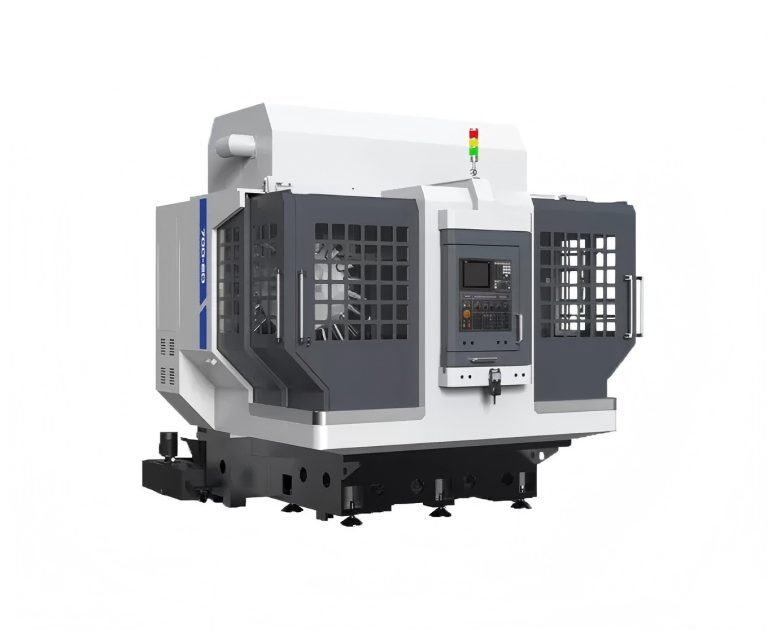

Description
It is suitable for the mass production of box components, battery end plates, and other similar parts. It is ideal for batch production in the new energy, 5G, LED frame, and 3C industries, as well as for hardware and automotive component manufacturing.
- High-Performance Mitsubishi CNC System
Equipped with the high-performance, highly stable Mitsubishi CNC control system.
- Robust Cast Iron Bed and Beam
The stable cast iron bed and beam provide excellent precision retention, minimizing deformation during high-speed cutting.
- High-Speed Cutting
Ensures stable and precise machining at high speeds without any deformation.
- Dual Mechanical Spindles
Capable of machining multiple products simultaneously, improving productivity.
Applications
Advantages
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
