Technical Data
| Name | Unit | Machine Model:EC-6050 |
| workbench | Table size (mm) | 1400*500 |
| Distance from table to spindle nose (mm) | 180~780 | |
| Maximum load-bearing weight (Kg) | ||
| journey | X-direction travel (mm) | 600 |
| Travel in Y direction (mm) | 500 | |
| Z travel (mm) | 600 | |
| Spindle | Spindle power (Kw) | 7.5/11 |
| Spindle maximum speed (rpm) | 12000 | |
| Spindle diameter (mm) | φ150 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | BT40 | |
| Feed rate | Maximum dry run feed speed (m/min) | 48 |
| Maximum cutting feed rate (m/min) | 20 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.008 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.005 | |
| Tool magazine | Tool magazine capacity | 24T*2 |
| Tool magazine form | Knife arm type knife magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 27 | |
| Other parameters | Dimensions (front and rear *left and right * up and down mm) | |
| Weight (Approx. weight: Kg) | 7800 | |
| Whether to configure network transmission and monitoring functions | Have | |
| Whether to configure the tool setter | Have |
Description
It is ideal for the mass production of box-type products, hardware components, and new energy box-type products.It is also suitable for the mass production of 5G box-type products, valve bodies, and disk-shaped components.

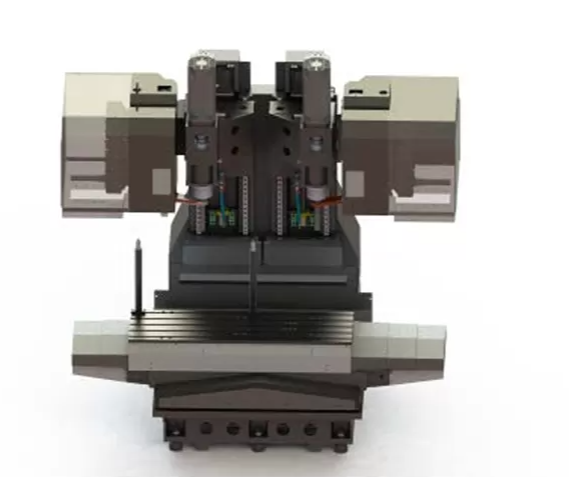

Cast Iron Bed and Beam
The machine is constructed with a cast iron bed and beam, providing high rigidity and stable precision over time.

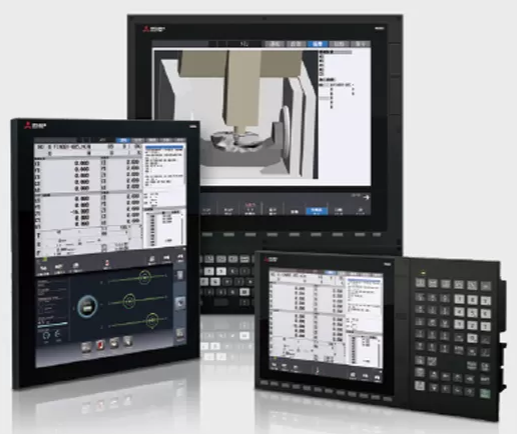

Mitsubishi M80B CNC System
Equipped with the high-performance and reliable Mitsubishi M80B control system, ensuring superior control and stability.

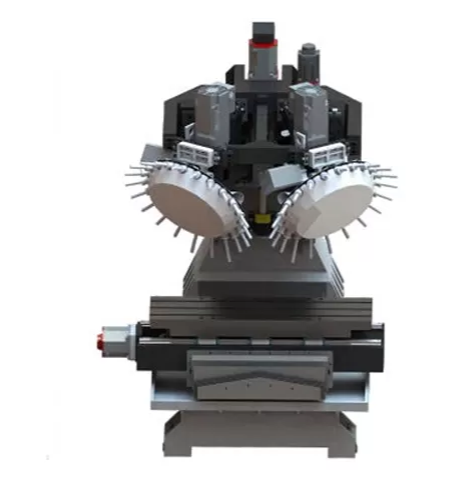

Dual 24-Tool Arm-Type Tool Magazine
Features dual 24-tool arm-type tool magazines, significantly improving machining efficiency.
Generous XYZ1/Z2 Travel
XYZ1/Z2 axis travel of 600500600/600mm allows for the machining of large-sized parts.

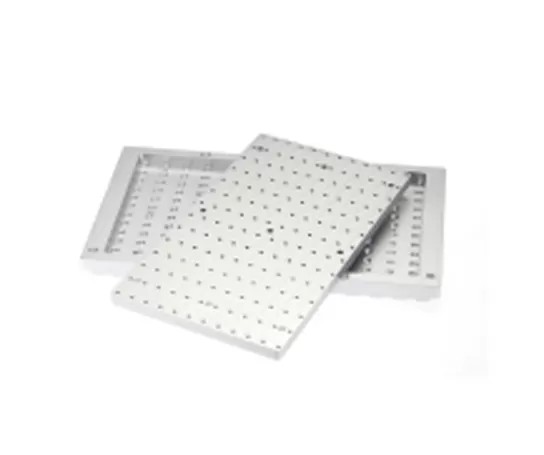

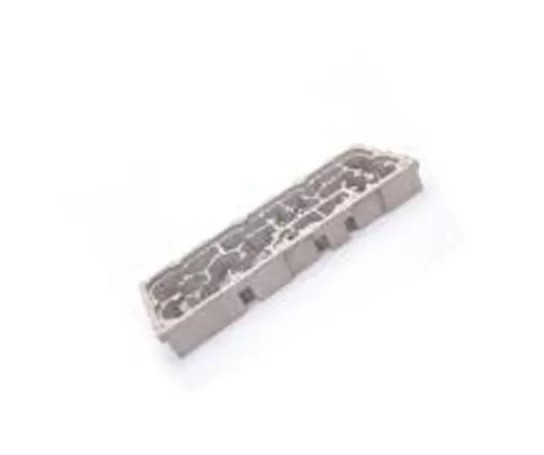

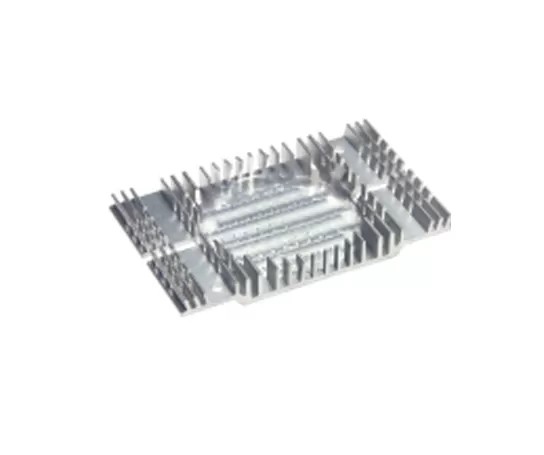

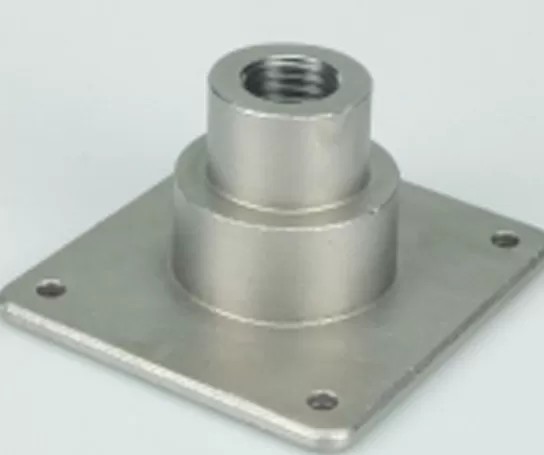

Applications
Advantages
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
