Technical Data
| Name | Unit | Machine Model:EC-5040 |
| workbench | Table size (mm) | 1200*400 |
| Distance from table to spindle nose (mm) | 180~500 | |
| Maximum load-bearing weight (Kg) | ||
| journey | X-direction travel (mm) | 500 |
| Travel in Y direction (mm) | 400 | |
| Ztravel (mm) | 320 | |
| Spindle | Spindle power (Kw) | 3.7/5.5 |
| Spindle maximum speed (rpm) | 20000 | |
| Spindle diameter (mm) | φ100 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | BT30 | |
| Feed rate | Maximum dry run feed speed (m/min) | 36 |
| Maximum cutting feed rate (m/min) | 30 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.005 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.004 | |
| Tool magazine | Tool magazine capacity | 21T*2 |
| Tool magazine form | Inclined disc knife magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 23 | |
| Other parameters | Dimensions (front and rear *left and right * up and down mm) | |
| Weight (Approx. weight: Kg) | 5000 | |
| Whether to configure network transmission and monitoring functions | Have | |
| Whether to configure the tool setter | Have |
Description
It is Ideal for machining small plate parts, disc-shaped parts, and shell components in general industries.3C Industry: Suitable for roughing and finishing processes for mobile phone frames, SIM card trays, hinges, tablet casings, and 5G-related parts such as plates, shells, and box components.Precision Industries: Suitable for the roughing and finishing of plate, shell, and box components in industries such as instruments, small molds, and medical devices.
- Cast Iron Bed and Beam Structure
The machine’s bed and beam are made of cast iron, with the overall structure analyzed using computer finite element analysis (FEA) to ensure optimal layout. This design offers superior precision stability compared to similar machines.

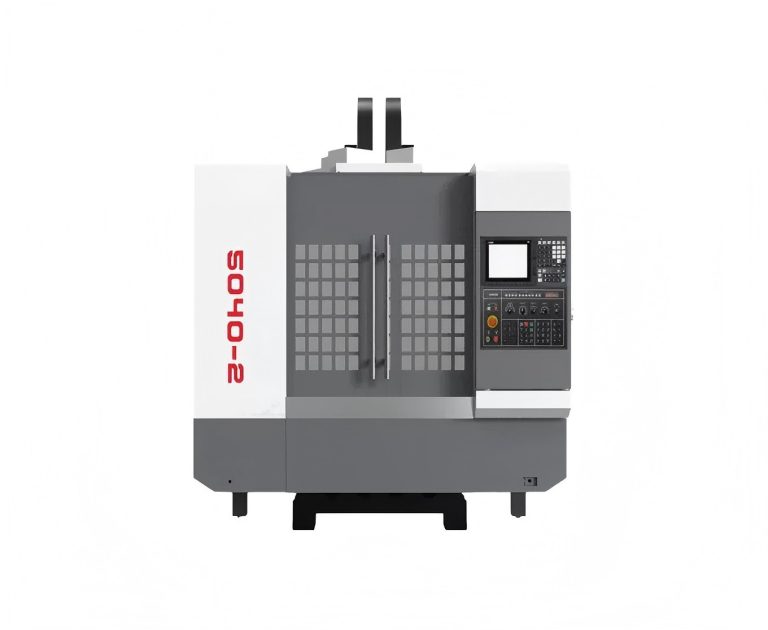

- Dual-Spindle Design for Enhanced Efficiency
The dual-Spindledesign allows for the simultaneous machining of two identical parts in a single clamping, achieving 1.7-2 times the efficiency of conventional drilling and tapping machines.
- Standard 21-Tool Slant Disc Tool Magazine
Large tool magazine capacity and high tool-change efficiency, with a tool-to-tool (T-to-T) time of just 1.5 seconds.
Applications
Advantages
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
