Technical Data
| Name | Unit | Machine Model:MC-500 |
| workbench | Table size (mm) | 620*400 |
| Distance from table to spindle nose (mm) | 180~500 | |
| Maximum load-bearing weight (Kg) | ||
| journey | X-direction travel (mm) | 400 |
| Travel in Y direction (mm) | 500 | |
| Z travel (mm) | 320 | |
| Spindle | Spindle power (Kw) | 3.7/5.5 |
| Spindle maximum speed (rpm) | 20000 | |
| Spindle diameter (mm) | φ100 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | BT30 | |
| Feed rate | Maximum dry run feed speed (m/min) | 36 |
| Maximum cutting feed rate (m/min) | 20 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.008 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.005 | |
| Tool magazine | Tool magazine capacity | 21T*2 |
| Tool magazine form | Inclined disc knife magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 24 | |
| Other parameters | Dimensions (front and rear *left and right * up and down mm) | |
| Weight (Approx. weight: Kg) | 5200 | |
| Whether to configure network transmission and monitoring functions | Have | |
| Whether to configure the tool setter | Have |
Description
It is ideal for the automatic, continuous machining of complex parts such as medium and small-sized box components, plates, discs, valves, and shells in a single clamping. It is widely used in industries such as precision parts, 5G products, hardware, automotive components, medical devices, and fields like 3C (computer, communication, and consumer electronics) and new energy.
- High-Stability, High-Performance CNC System
Equipped with a Syntec CNC system that ensures both stability and high performance.
- Heavy-Duty Marble Bed and High-Rigidity Cast Beam
Provides a stable foundation with high rigidity, minimizing deformation during high-speed cutting.
- High-Speed Cutting
Capable of stable, high-speed cutting without deformation, ensuring consistent machining quality.

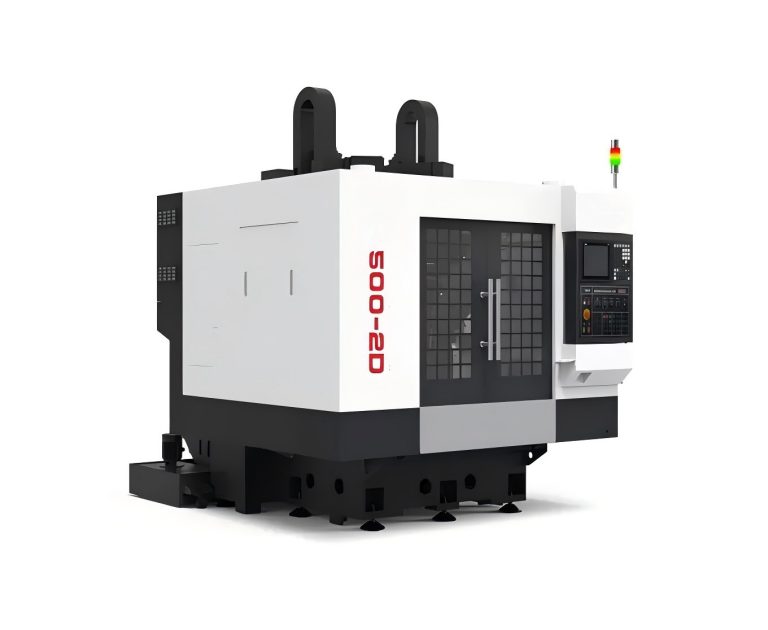

- Dual High-Torque Spindles
Allows for simultaneous machining of multiple products, increasing efficiency.
Applications
Advantages
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
