Technical Data
| Name | Unit | Machine Model:MC-400D |
| workbench | Table size (mm) | 420*500 |
| Distance from table to spindle nose (mm) | 155~355 | |
| Maximum load-bearing weight (Kg) | ||
| journey | X-direction travel (mm) | 400 |
| Travel in Y direction (mm) | 400 | |
| Z travel (mm) | 200 | |
| Spindle | Spindle power (Kw) | 6 |
| Spindle maximum speed (rpm) | 36000 | |
| Spindle diameter (mm) | φ100 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | ISO 25 | |
| Feed rate | Maximum dry run feed speed (m/min) | 15 |
| Maximum cutting feed rate (m/min) | 10 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.005 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.004 | |
| Tool magazine | Tool magazine capacity | 21T*3 |
| Tool magazine form | Chain servo tool magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 29 | |
| Other parameters | Dimensions (front and rear *left and right * up and down mm) | |
| Weight (Approx. weight: Kg) | 5000 | |
| Whether to configure network transmission and monitoring functions | Have | |
| Whether to configure the tool setter | Have |
Description
It is is ideal for the roughing and finishing of parts such as mobile phone frames, SIM card trays, hinges, tablet casings, and 5G-related plates, shells, and box components in the 3C industry. It is also suited for the mass production of panels and cover parts in industries such as instrumentation and electronics.
- Cast Iron Bed and Beam Structure
The machine bed and beam are made of cast iron, with the entire structure optimized using finite element analysis (FEA). This provides superior precision stability compared to similar machines.

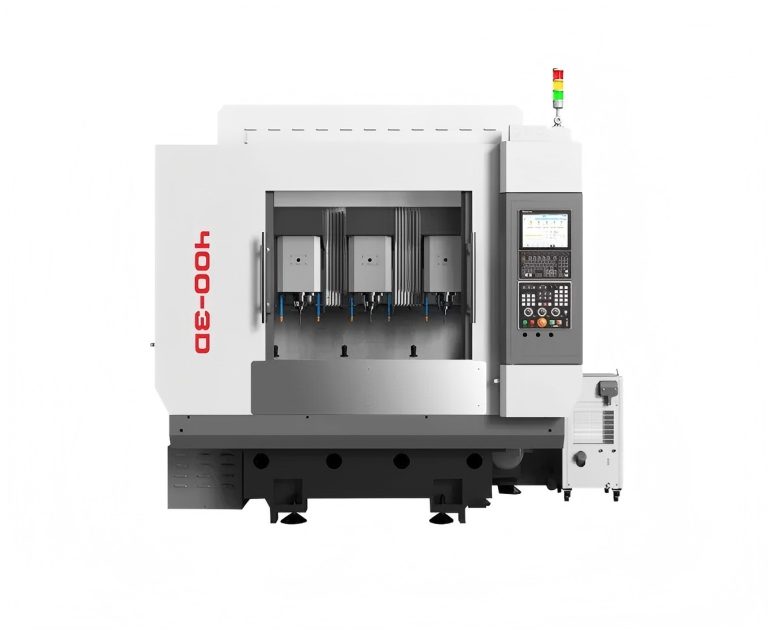

- Three-Spindle, Three-Channel Design
Combines the efficiency of a three-Spindlemachine with the capability of independent compensation for each channel, ensuring stable dimensional accuracy. It delivers 2.5-3 times the efficiency of single-Spindlemachines.
- Standard 21-Tool Chain-Type Tool Magazine
Large tool capacity provides the capability to complete complex parts in a single clamping. The tool magazine’s protective design ensures long-term stable machining performance.
Applications
Advantages
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
