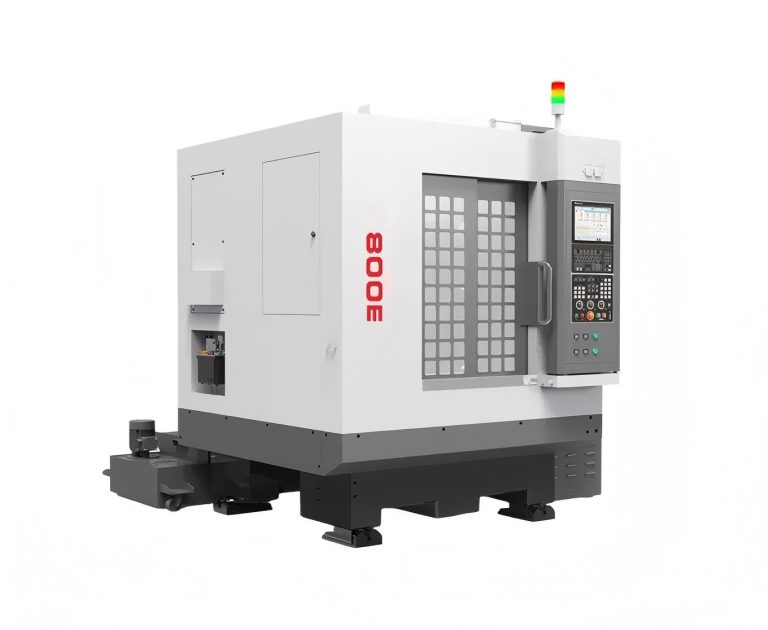

Technical Data
| Name | Unit | Machine Model:EC-800E |
| workbench | Table size (mm) | 840*500 |
| Distance from table to spindle nose (mm) | 85~235 | |
| Maximum load-bearing weight (Kg) | ||
| journey | X-direction travel (mm) | 210 |
| Travel in Y direction (mm) | 500 | |
| Z travel (mm) | 150 | |
| Spindle | Spindle power (Kw) | 2.5 |
| Spindle maximum speed (rpm) | 60000 | |
| Spindle diameter (mm) | φ62 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | T11 | |
| Feed rate | Maximum dry run feed speed (m/min) | 18 |
| Maximum cutting feed rate (m/min) | 10 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.005 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.004 | |
| Tool magazine | Tool magazine capacity | 25T *4 |
| Tool magazine form | Straight line knife magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 18 | |
| Other parameters | Dimensions (front and rear *left and right * up and down mm) | 1550*1450*2082 |
| Weight (Approx. weight: Kg) | 3200 | |
| Whether to configure network transmission and monitoring functions | Have | |
| Whether to configure the tool setter | Have |
Description
It is ideal for the mass production of small aluminum alloy components for 3C consumer electronics, including mobile phone camera brackets, buttons, and smartwatch housings.
- Natural Granite Bed and Beam
The machine features a natural granite bed and beam, providing excellent vibration absorption and corrosion resistance.
- Customizable High-Speed Precision Spindle
Flexibility to choose different high-speed precision spindles based on specific product requirements.
- Optimized Compact Design with 12-Tool Linear Magazine
Equipped with a 12-tool linear tool magazine, the machine is designed to minimize its footprint while maintaining effective travel distances, increasing overall factory space efficiency.

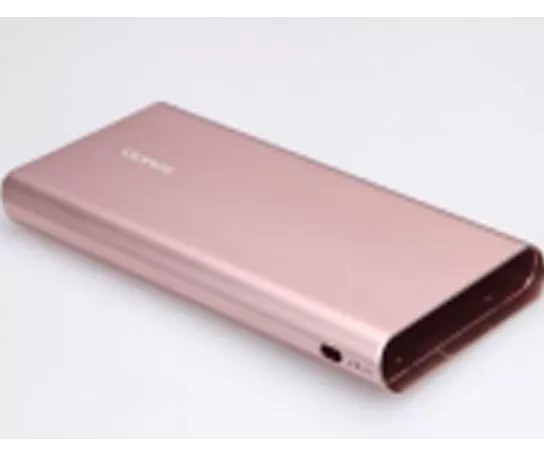

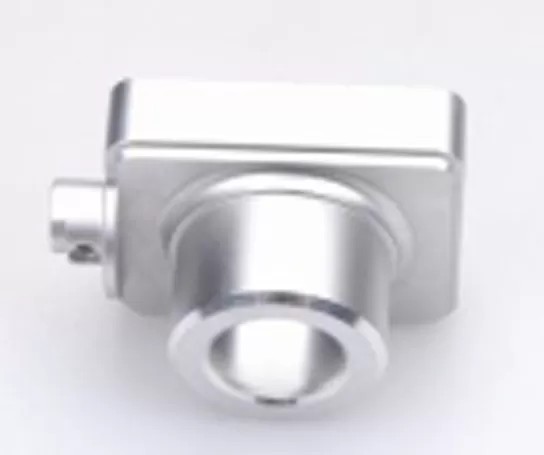

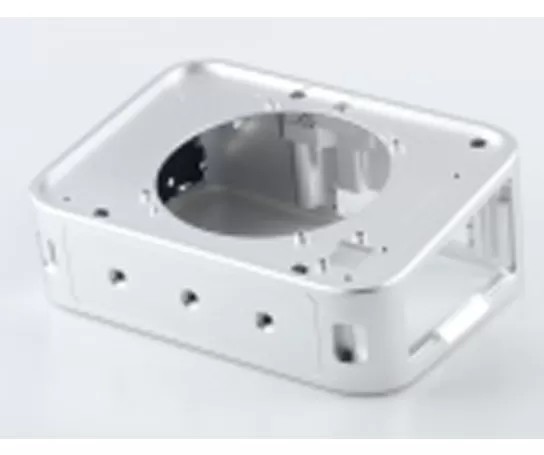

Applications
Advantages
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
