Technical Data
| Name | Unit | Machine Model:EC-1100 |
| workbench | Table size (mm) | 1100*500 |
| Distance from table to spindle nose (mm) | 180~330/380 | |
| Maximum load-bearing weight (Kg) | ||
| journey | X-direction travel (mm) | 280 |
| Travel in Y direction (mm) | 500 | |
| Z travel (mm) | 150 or 200 | |
| Spindle | Spindle power (Kw) | 6.0/7.5 |
| Spindle maximum speed (rpm) | 36000/30 000 | |
| Spindle diameter (mm) | φ100/120 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | ISO 25/BT30 | |
| Feed rate | Maximum dry run feed speed (m/min) | 18 |
| Maximum cutting feed rate (m/min) | 10 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.005 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.004 | |
| Tool magazine | Tool magazine capacity | 16T *4/21T*4 |
| Tool magazine form | Chain servo tool magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 32 | |
| Other parameters | Dimensions (front and rear *left and right * up and down mm) | |
| Weight (Approx. weight: Kg) | 4000 | |
| Whether to configure network transmission and monitoring functions | Have | |
| Whether to configure the tool setter | Have |
Description

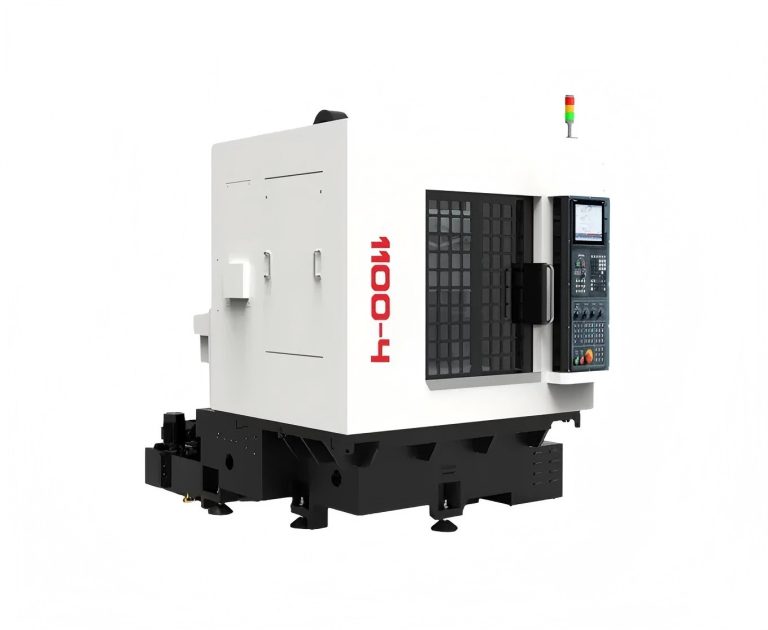

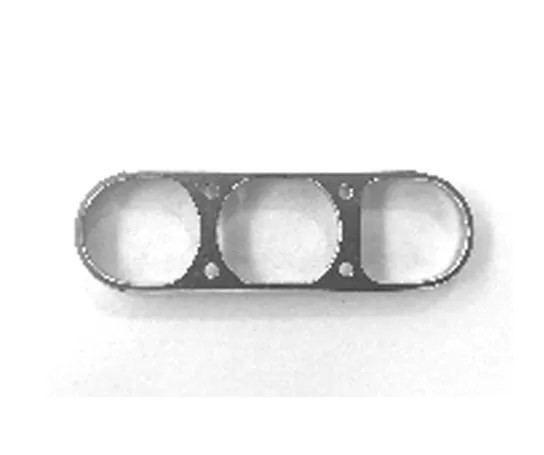

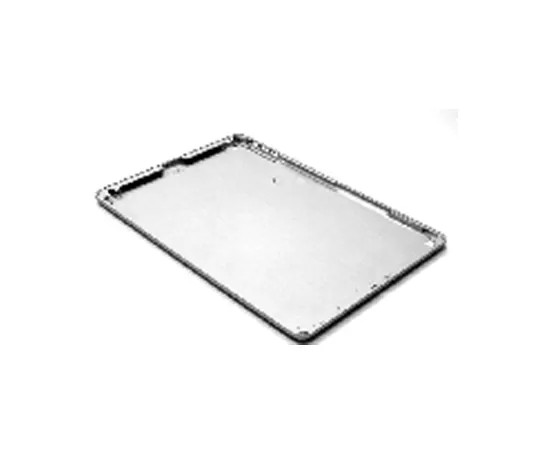

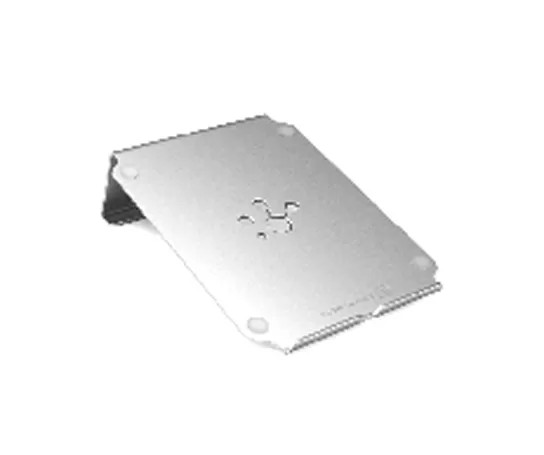

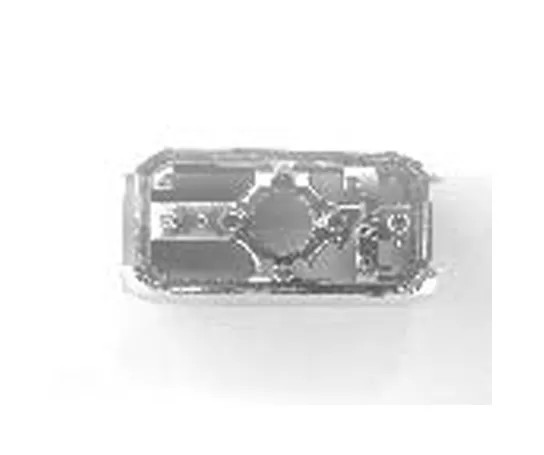

It is ideal for roughing and finishing processes of aluminum parts, housings, and radiators in the new energy vehicle industry.
- Cast Iron Bed and Beam Structure
The machine’s bed and beam are made from cast iron, and its structure is optimized using finite element analysis (FEA). This provides superior precision stability compared to similar machines
- High-Speed φ100/ISO25 Precision Spindle
Standard configuration includes a high-speed φ100/ISO25 spindle, which is versatile enough to handle both roughing and finishing operations.
- 21-Tool Chain-Type Tool Magazine
Comes standard with a large 21-tool chain-type tool magazine that offers excellent protection and supports stable, high-speed machining of complex parts.
- Four-Spindle Rigid Tapping Capability
Capable of simultaneous rigid tapping with four spindles, enhancing productivity for tapping operations.
