Technical Data

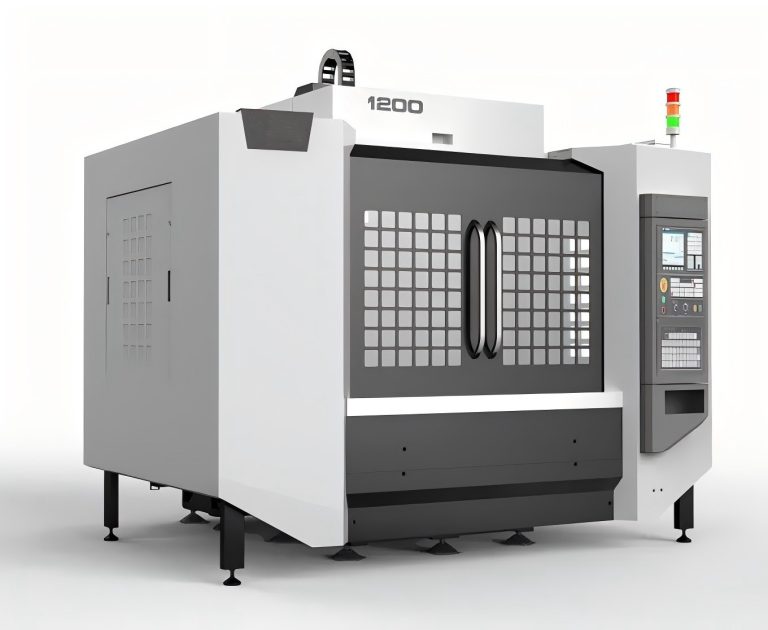

| Items | Unit | Machine Model:DMC-1200 | ||
| Travel | Table travel (X axis) | mm | 1200 | |
| Saddle travel (Y axis) | mm | 650 | ||
| Headstock travel (Z axis) | mm | 410 | ||
| Distance from spindle nose to table surface | mm | 125-535 | ||
| Distance from spindle center to column guide surface | mm | 727 | ||
| Table | Table size | mm | 1300*650 | |
| Max. load | kg | 600 | ||
| T-slot (number of slots – slot width * spacing) | mm | 5-18*125 | ||
| Spindle | Motor power (rated/short time) | kW | 3.7/5.5 | |
| Motor torque (rated/short time) | N.m | 14.1/21 | ||
| Spindle motor speed | rpm | 20-20000 | ||
| Spindle taper | / | BT30 | ||
| Speed | Cutting feed speed range | mm/min | 1-15000 | |
| X/Y/Z axis rapid traverse speed | m/min | 36/36/36 | ||
| Accuracy | Positioning accuracy (X/Y/Z) | mm | 0.01 GB/T 18400.4（Full travel） | |
| Repeatability (X/Y/Z) | mm | 0.006 GB/T 18400.4（Full travel） | ||
| Tool magazine | Tool storage capacity | pcs | 21 | |
| Max. tool weight | kg | 3 | ||
| Max. tool length | mm | 200 | ||
| Max. tool diameter (full /adjacent empty) | mm | Ф60/Ф80 | ||
| Other | CNC system | / | Mitsubishi M80VB | |
| Air source | Flow | L/min | ≥200（ANR） | |
| Air pressure | MPa | 0.6-0.8 | ||
| Equipment capacity | kVA | 15 | ||
| Max. coolant tank capacity | L | 330 | ||
| Machine size | mm | 2960*3400*2710 Corresponding to X*Y*Z axis | ||
| Weight (approx.) | kg | 5500 | ||
Description
High-speed, High-efficiency, High-precision
Widely used in the 3C industry, automotive parts, small mold processing, medical devices, and other industries for the machining of small plate parts, disc-shaped parts, and housings.
Base Structure
The base structure is designed with digital analysis and precision engineering, featuring an oversized span with six-point support, effectively enhancing the machine’s rigidity and vibration resistance, ensuring high stability and accuracy during the machining process.
X, Y, Z Axes
All three axes are equipped with precision ball screws, and the guide rails use high-precision linear guides, ensuring smooth operation and precise positioning for outstanding machining accuracy and reliability.
Direct Drive Spindle
The spindle features a direct-drive transmission system, reducing errors in high-speed tapping and ensuring excellent performance with high output power in high-speed machining.
The high-speed spindle responds quickly and is equipped with ceramic ball bearings, significantly extending spindle life.
The precision-grade spindle is standard with a maximum speed of up to 24,000 rpm, meeting the demands of high-precision and high-speed machining.
High-Speed Servo Tool Changer
The optimized PLC tool changer system provides a fast and stable tool change process, significantly reducing tool change time and non-machining time, thus improving overall machining efficiency.
The Z-axis is designed with optimization to enhance rigidity and significantly improve acceleration, reducing idle travel time and further increasing machining efficiency and machine responsiveness.
