Technical Data
| Items | Unit | Machine Model | |
| V-800 | |||
| Travel | Travel X/Y/Z | mm | 850/900/580 |
| B axis rotation range | ° | ±120 | |
| C axis rotation range | ° | 360° | |
| Distance from spindle nose to worktable surface | mm | 180-760 | |
| Table | Table size | mm | Φ800*630 |
| Max. load | kg | 800 | |
| T-slot (number of slots – slot width * spacing) | mm | 9-18*65 | |
| Speed | X/Y/Z axis rapid traverse speed | mm/min | 36000 |
| A/C axis rapid traverse rotation speed | r/min | 30/50 | |
| Accuracy | X/Y/Z axis positioning accuracy | mm | 0.006/0.006/0.006 |
| X/Y/Z axis repeatability accuracy | mm | 0.004/0.004/0.004 | |
| A/C axis positioning accuracy | sec | 6/6 | |
| A/C axis repeatability accuracy | sec | 4/4 | |
| Spindle | Spindle motor power (S1/S6) | kW | 30/36 |
| Spindle motor torque (S1/S6) | Nm | 100/120 | |
| Spindle speed | r/min | 0~16000 | |
| Tool holder specifications | / | HSK A63 | |
| Tool magazine | Tool magazine structure | / | Chain tool arm magazine |
| Tool magazine capacity | T | 40 | |
| Max. tool weight | kg | 8 | |
| Max. tool length | mm | 300 | |
| Max. diameter (full /adjacent empty) | mm | φ80/φ150 | |
| Others | CNC system | / | Siemens SINUMERIK ONE |
| Air source pressure requirement | MPa | 0.6~0.8 | |
| Total electrical capacity | kW | 75 | |
| Machine size(length*width*height) | mm | 5100*4500*3400 | |
| Main machine weight (approx.) | KG | 18000 | |
Description

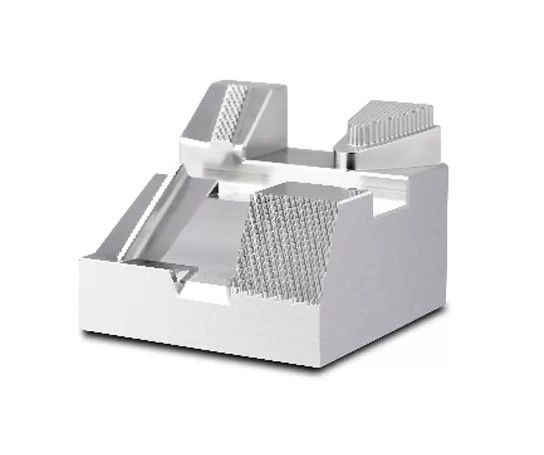

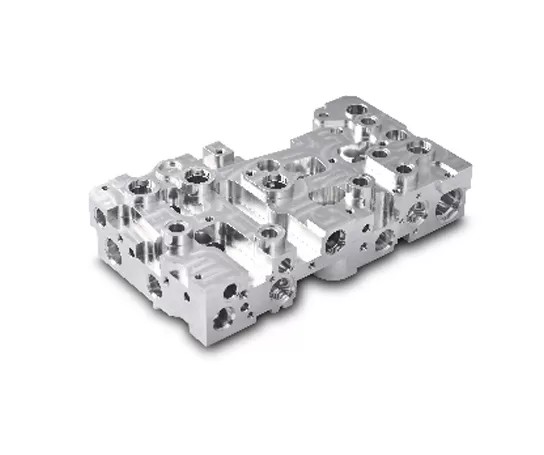

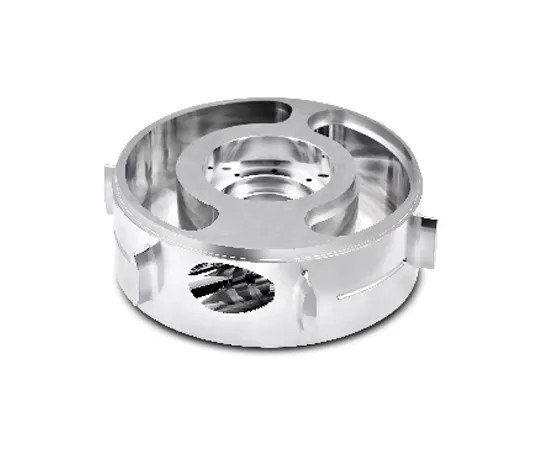

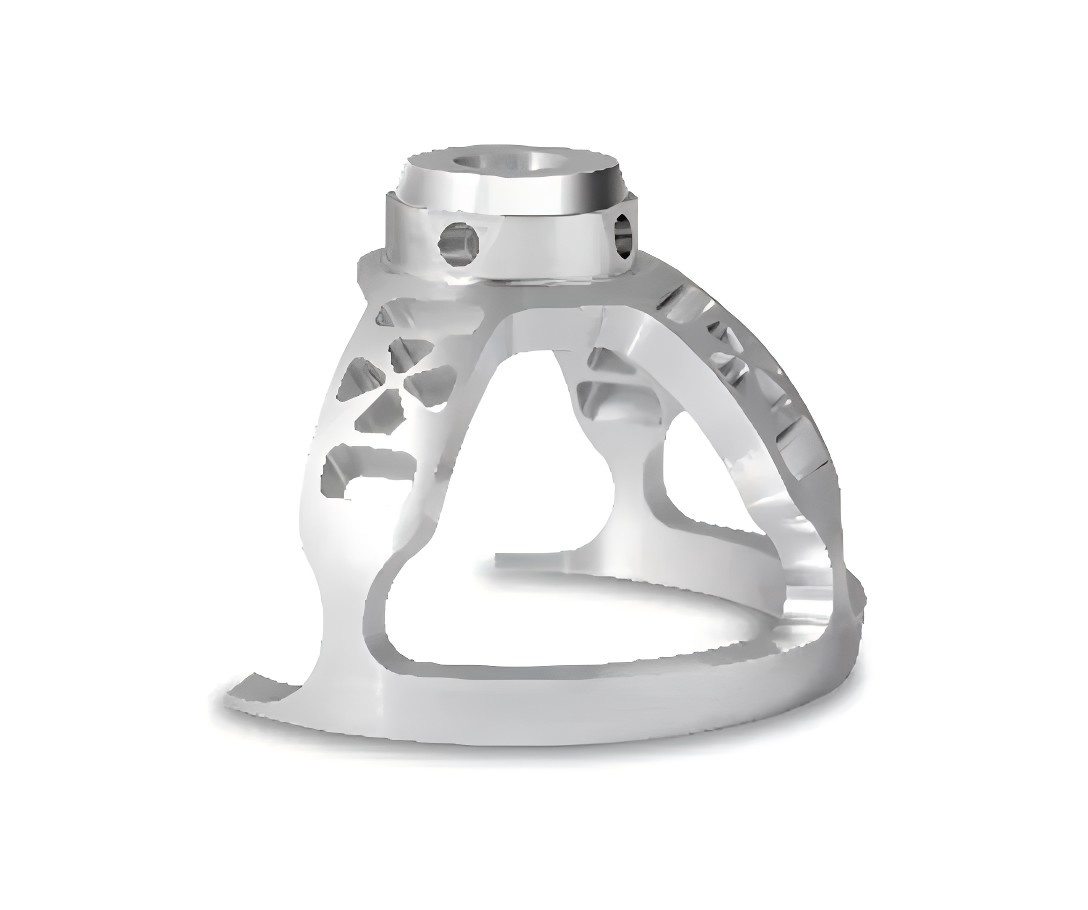

Widely used in the processing of complex parts such as impellers, aerospace, automotive components, precision molds, and medical devices.
Character

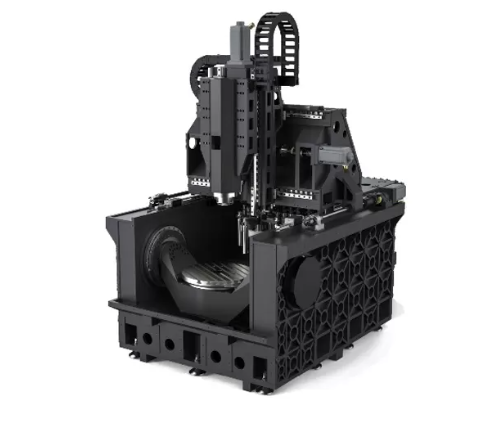

Moving Beam Gantry Structure
- The distance between the spindle and the crossbeam is short, allowing for independent operation of the three axes and high overall rigidity.
- The Y-axis features a dual-ball screw, dual-drive design, ensuring optimal dynamic response performance.
- The ball screws of the feed axes are designed with a hollow structure and equipped with a cooling system, effectively maintaining thermal stability.

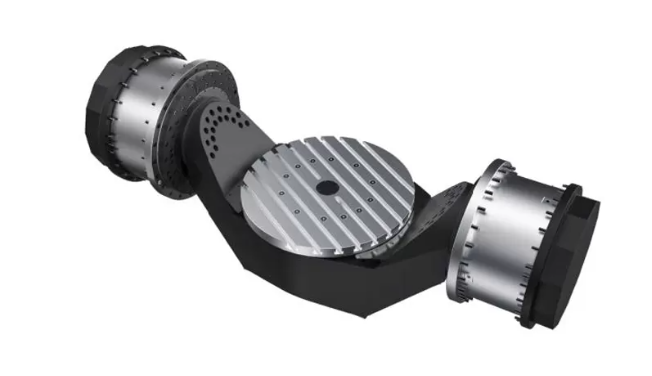

High-Precision Direct-Drive Rotary Table
- The A/C axis cradle rotary table structure is independently designed, with the A-axis driven by dual-torque motors, significantly enhancing rigidity and vibration resistance.
- Both the A and C axes are equipped with high-torque, frameless direct-drive motors, and the compact design integrates the motor rotor with the rotary table mechanism, offering excellent transmission rigidity.
- Additionally, the motor stator is cooled with coolant to ensure the thermal stability of the rotary table.
- The maximum speed of the A/C axes can reach 50 r/min.
High-Speed Motorized Spindle

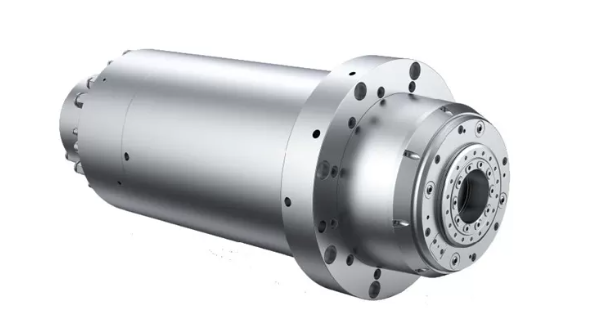

HSK A63 high-speed motorized spindle
·Maximum speed up to 18,000 r/min.
