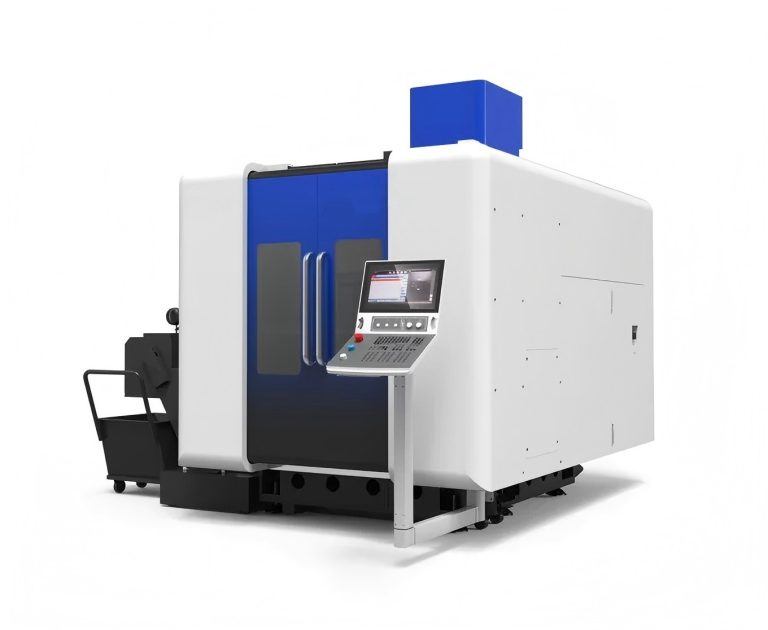

Technical Data
| Items | Unit | Machine Model | |
| V-650 | |||
| Travel | Travel X/Y/Z | mm | 650/800/500 |
| B axis rotation range | ° | ±120 | |
| C axis rotation range | ° | 360° | |
| Distance from spindle nose to worktable surface | mm | 150-650 | |
| Table | Table size | mm | Φ650×530 |
| Max. load | kg | 500 | |
| T-slot (number of slots – slot width * spacing) | mm | 7-18*65 | |
| Speed | X/Y/Z axis rapid traverse speed | mm/min | 36000 |
| A/C axis rapid traverse rotation speed | r/min | 50/50 | |
| Accuracy | X/Y/Z axis positioning accuracy | mm | 0.006/0.006/0.006 |
| X/Y/Z axis repeatability accuracy | mm | 0.004/0.004/0.004 | |
| A/C axis positioning accuracy | sec | 5/5 | |
| A/C axis repeatability accuracy | sec | 3/3 | |
| Spindle | Spindle motor power (S1/S6) | kW | 30/35.4 |
| Spindle motor torque (S1/S6) | Nm | 72/85 | |
| Spindle speed | r/min | 0~18000 | |
| Tool holder specifications | / | HSK A63 | |
| Tool magazine | Tool magazine structure | / | Chain tool arm magazine |
| Tool magazine capacity | T | 40 | |
| Max. tool weight | kg | 8 | |
| Max. tool length | mm | 300 | |
| Max. diameter (full /adjacent empty) | mm | φ80/φ150 | |
| Others | CNC system | / | Siemens SINUMERIK ONE |
| Air source pressure requirement | MPa | 0.6~0.8 | |
| Total electrical capacity | kW | 68 | |
| Machine size(length*width*height) | mm | 4300*3900*3300 | |
| Main machine weight (approx.) | KG | 15000 | |
Description
Widely used in the processing of complex parts such as impellers, aerospace, automotive components, precision molds, and medical devices.
Character
Moving Beam Gantry Structure
- The distance between the spindle and the crossbeam is short, allowing for independent operation of the three axes and high overall rigidity.
- The Y-axis features a dual-ball screw, dual-drive design, ensuring optimal dynamic response performance.
- The ball screws of the feed axes are designed with a hollow structure and equipped with a cooling system, effectively maintaining thermal stability.
High-Precision Direct-Drive Rotary Table
- The A/C axis cradle rotary table structure is independently designed, with the A-axis driven by dual-torque motors, significantly enhancing rigidity and vibration resistance.
- Both the A and C axes are equipped with high-torque, frameless direct-drive motors, and the compact design integrates the motor rotor with the rotary table mechanism, offering excellent transmission rigidity.
- Additionally, the motor stator is cooled with coolant to ensure the thermal stability of the rotary table.
- The maximum speed of the A/C axes can reach 50 r/min.
High-Speed Motorized Spindle
HSK A63 high-speed motorized spindle
·Maximum speed up to 18,000 r/min.
Applications
Advantages
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
