Technical Data
| Items | Unit | Machine Models:V-200 | |
| Travel | Travel X/Y/Z | mm | 500/280/300 |
| B axis rotation range | ° | +30°~ -120° | |
| C axis rotation range | ° | 360° | |
| Distance from spindle nose to worktable surface | mm | 100-400 | |
| Table | Table size | mm | Φ260 |
| Max. load | kg | 30 | |
| T-slot (number of slots – slot width * spacing) | mm | 8-14*45°(Evenly distributed) | |
| Speed | X/Y/Z axis rapid traverse speed | mm/min | 24000 |
| B/C axis rapid traverse rotation speed | r/min | 50/50 | |
| Accuracy | X/Y/Z axis positioning accuracy | mm | 0.006/0.006/0.006 |
| X/Y/Z axis repeatability accuracy | mm | 0.004/0.004/0.004 | |
| B/C axis positioning accuracy | sec | 8/8 | |
| B/C axis repeatability accuracy | sec | 5/5 | |
| Spindle | Spindle motor power (S1/S6) | kW | 11/19 |
| Spindle motor torque (S1/S6) | Nm | 5/8.7 | |
| Spindle speed | r/min | 0~30000 | |
| Tool holder specifications | / | HSK E40 | |
| Tool magazine | Tool magazine structure | / | Umbrella tool magazine |
| Tool magazine capacity | T | 30 | |
| Max. tool weight | kg | 1.2 | |
| Max. tool length | mm | 150 | |
| Max. diameter (full /adjacent empty) | mm | φ40/φ60 | |
| Others | CNC system | / | Siemens SINUMERIK ONE |
| Air source pressure requirement | MPa | 0.6~0.8 | |
| Total electrical capacity | kW | 32 | |
| Machine size(length*width*height) | mm | 3200*4000*2700 | |
| Main machine weight (approx.) | KG | 5500 | |
Description

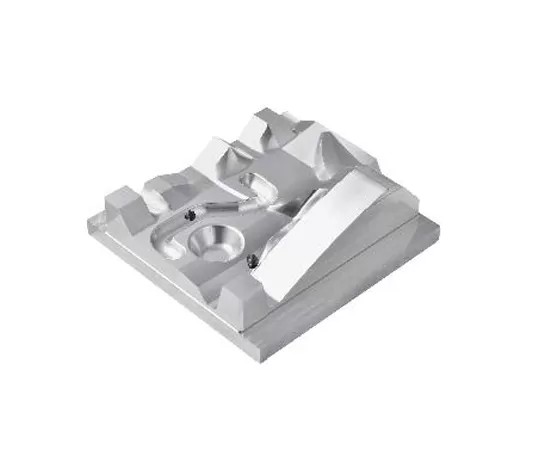

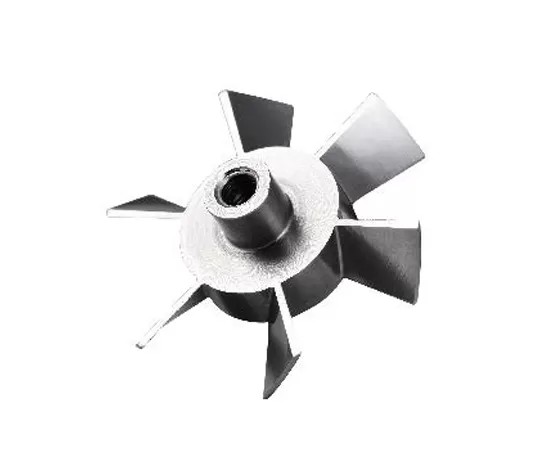

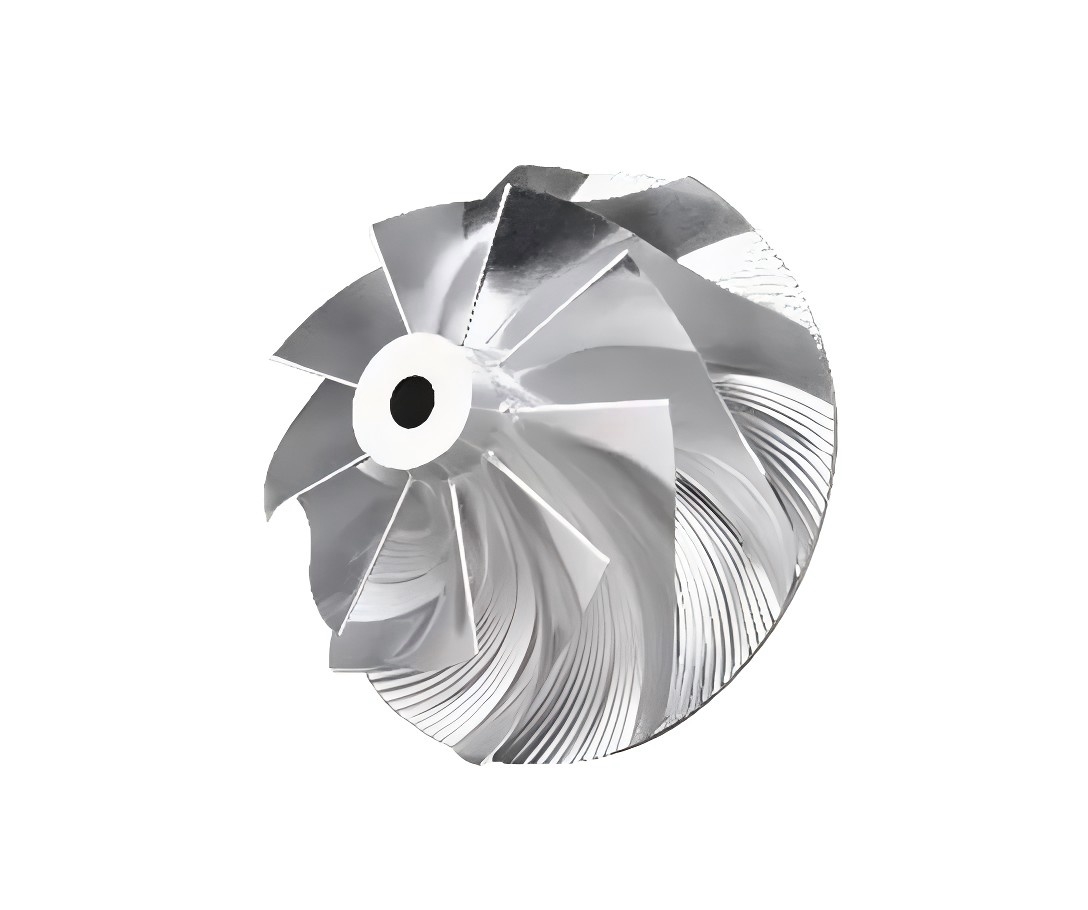

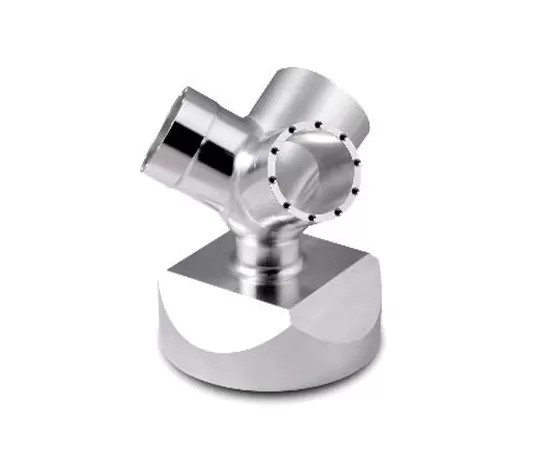

Widely used in the processing of impellers, automotive parts, precision molds, medical devices, and other complex components.
Character

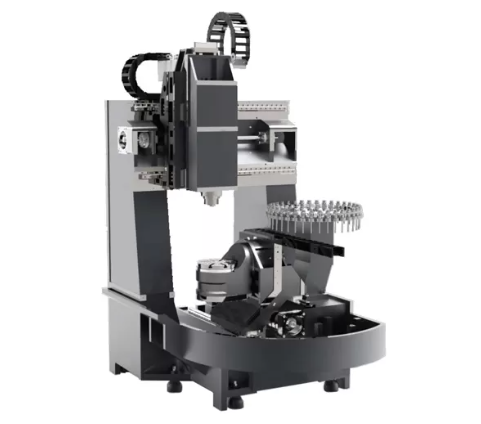

High-Rigidity Structure
- High rigidity gantry-type O-shaped structure, high-quality gray cast iron material: Provides strong rigidity and stability, reducing deformation and improving accuracy.
- Step-type arrangement of the beam’s guide rails, short distance from the spindle to the beam: Enhances rigidity and improves machining accuracy.
- Single-arm rotary table, minimized distance from the X-axis drive point to the machining point: Reduces vibration, improving precision and efficiency.

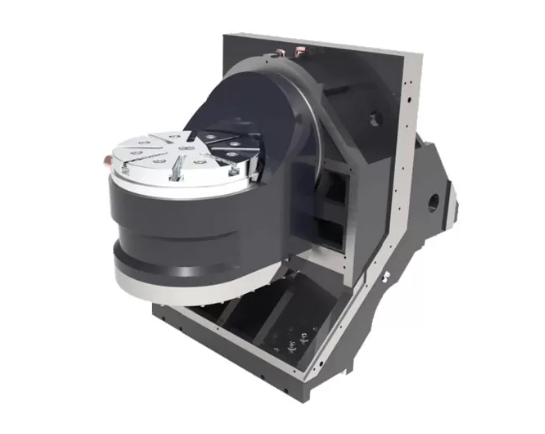

High-Precision Direct-Drive Rotary Table
- High-torque frameless direct-drive motors: Provide high rigidity and precision, directly driving the B/C axes, reducing mechanical losses.
- Compact structure, motor rotor integrated with the rotary mechanism: Improves stability and accuracy.
- Motor stator cooled by coolant: Ensures thermal stability, reducing precision errors caused by temperature changes.
- Maximum speed of B/C axes: 50r/min: Meets the demands of complex machining and improves efficiency.

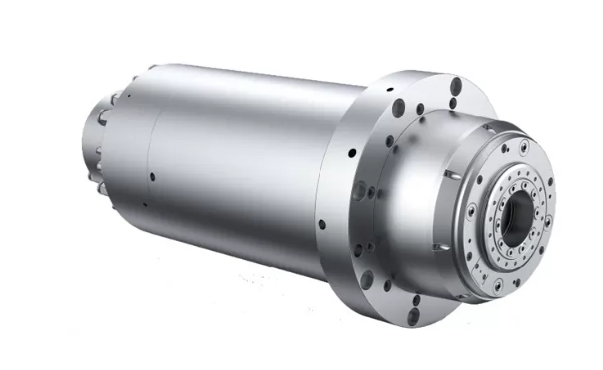

High-Speed Motorized Spindle
HSK E50 high-speed motorized spindle.
Maximum speed up to 24,000 rpm.
Applications
Advantages
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
