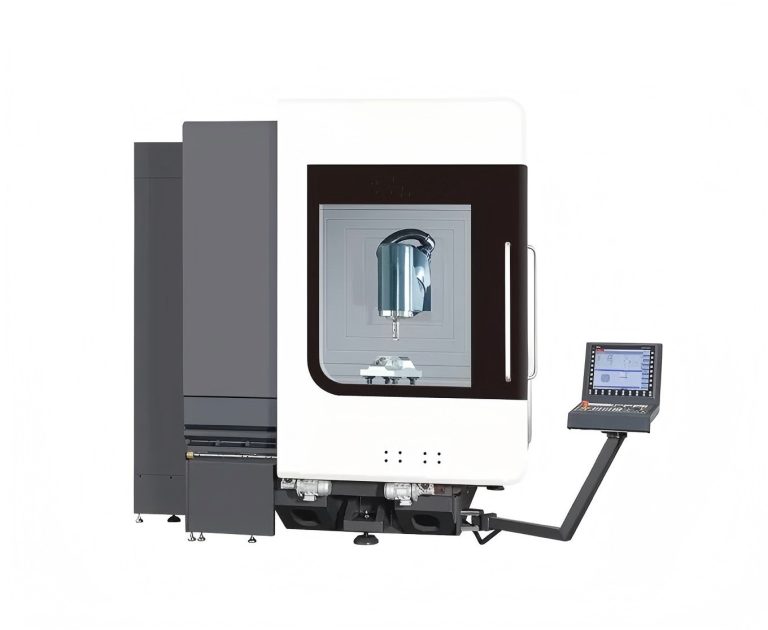

Technical Data
| Items | Machine Model: CL-80 |
| X/Y/Z axis travel | 800×1050×800mm |
| Distance from horizontal milling head center to working table | 39~839mm |
| Rotary table speed | 300rpm |
| Working table size | φ880mm |
| Max table load | Milling 3000kg Turning 1500kg |
| Swing milling head (B axis) | Standard |
| Swing range (0=Vertical/180=Level) | -15°~ +180° |
| B axis rated speed | 50rpm |
| Distance from vertical spindle nose to table | 162~962mm |
| Electric spindle Max. speed | 12000rpm |
| Power（S1-100%/40%DC） | 34/42kW |
| Torque（S1-100%/40%DC） | 132/192Nm |
| Spindle taper | 1:10 Taper |
| Tool interface | HSK-A63 |
| Tool magazine capacity | 40T |
| Max. tool diameter/length/weight | φ85mm/300mm/8kg |
| Tool changing time (Tool to Tool) | 4s |
| Drilling (Normalizing medium carbon steel) | φ40mm |
| Tapping (Normalizing medium carbon steel) | M24 |
| Rapid traverse | 40m/min |
| X/Y/Z positioning accuracy | 0.006mm |
| X/Y/Z repeat positioning accuracy | 0.004mm |
| B/C positioning accuracy | 8″ |
| B/C repeat positioning accuracy | 4″ |
| Infrared probe | Renishaw OMP60 |
| Tool setting gauge (Tool measuring in machining area) | Renishaw NC4F230 |
| Machine height (Standard machine) | 3350mm |
| Main body occupied area(L*W) | 4800×2930mm |
| Tool magazine occupied area (L*W) | 1710×1350mm |
| Chip conveyor occupied area (L*W) | 3070×1065mm |
| Water tank occupied area(L*W) | 1785×1355mm |
| Complete machine occupied area (excluding water tank) (L*W) | 5610×3600mm |
| Machine weight | 30000kg |
| Control system | Siemens ONE |
Description
The advanced and highly stable 5-axis machine mechanism, with a simple man-machine operation mode, focuses on improving accuracy, performance and efficiency by 30% each, achieving the highest machining performance and part accuracy under high dynamic conditions. From the hardto-cut materials in the aviation industry to the highest surface quality requirements in the mold manufacturing industry, five-axis simultaneous milling-turning compound machining center provides the best conditions. Five-axis linkage turning and milling compound machining center can realize multi-form use: vertical and horizontal conversion, milling and turning, one-time clamping, multi-process and multi-angle processing and forming.
Character
Optimal Mechanical Casting Design
- The bed is made of a new mineral casting structure, while moving parts use Meehanite-grade high-quality cast iron.
- Tempered and naturally aged to eliminate internal stresses.
- Materials with natural frequency to eliminate vibration-induced processing stresses.
- The large-area, high-rigidity column design effectively improves rigidity and static/dynamic precision.
- Three-axis hollow cooling ballscrew drive.
Powerful 5-Axis Milling Head
SIGNIFICANTLY IMPROVED AND IMPROVED INTERFERENCE PROFILE AND RIGIDITY
The B-axis with direct drive of DD motor improves rigidity through larger YRT bearing, which can realize high-torque cutting under the linkage state.
Turning and Milling Table
- Independently designed and manufactured.
- Internal DD motor with zero backlash, direct drive design.
- High acceleration and deceleration response characteristics.
- Larger YRT bearings for improved rigidity.
- High rated drive torque with positioning and clamping device for the worktable.
- Supports both milling and turning operations, reducing workpiece handling and improving product precision.
Automatic Tool Change System
- Tool selection and change are controlled by a servo motor for more stable and accurate operation.
- With Siemens ONE’s tool management feature, tool management is more efficient.
